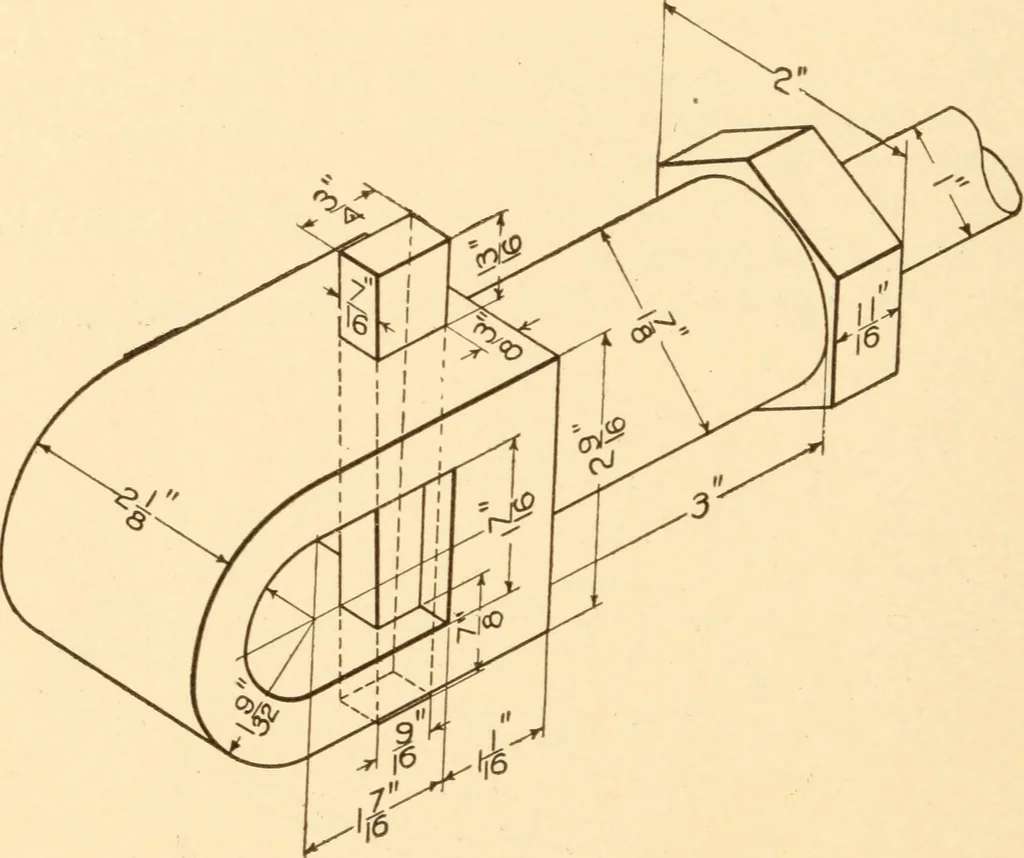

122 A PRACTICAL COURSE IN orthographically, make 30° to the horizontal in theisometric construction. c. Non-isometric lines of edges making other thanright angles must be laid ofif orthographically first andthen transferred to the isometric drawing. This dis-torts the true length of non-isometric… … Fig. 127 d. Surfaces, not lying in the same plane, are estab-lished from center-isometric axes. e. Isometric circles are drawn within isometricsquares of the same diameter as the given circle.Elliptic or irregular curves are constructed flat, thentransferred. Fig. 126. MECHANICAL DRAWING 123
