Mechanical drawing; a treatise on the drawing of mechanical and machine details (1920)
Jones, Franklin Day, 1879-1967 · New York, The Industrial press; [etc., etc.] · leaf 37

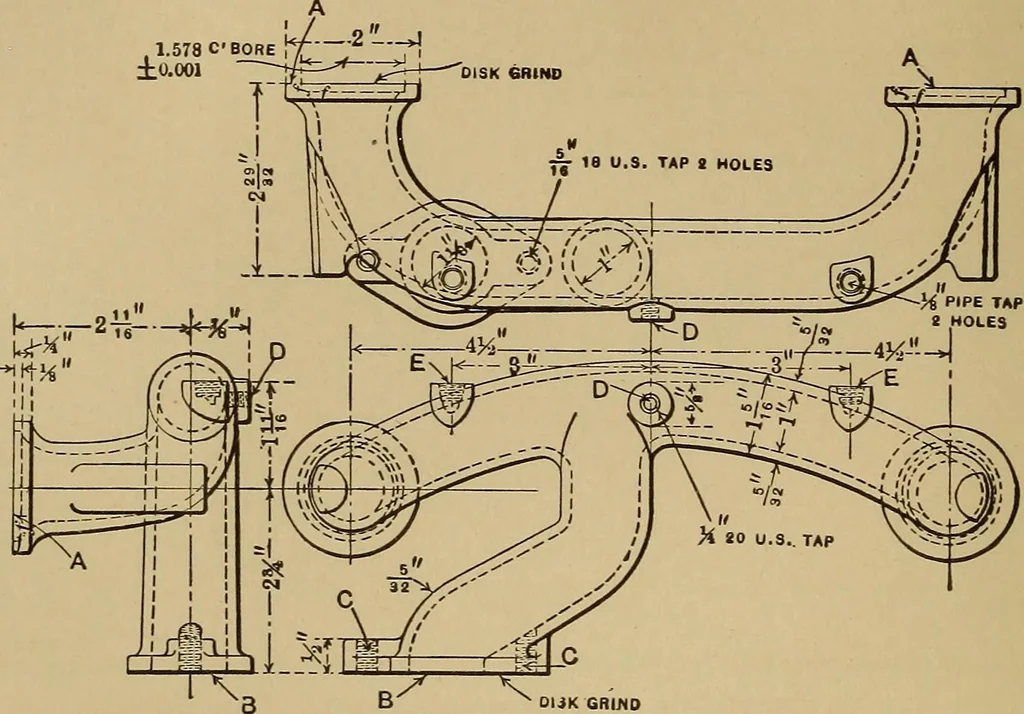

referring to these three views, it isclear that the manifold has round flanges at A and a round-cornered diamond-shaped flange B. The shape of flange Bis shown in the plan view where dotted lines are used to repre-sent that part which is concealed beneath the main branchof the manifold. The bosses… … Fig. 11. Drawing of an Exhaust Manifold Auxiliary Views of Inclined Surfaces. — According to themethod of projection illustrated by the diagram A} Fig. 2,the three planes upon which the front, side, and top views areprojected are at right angles to each other and each plane isparallel to that…
