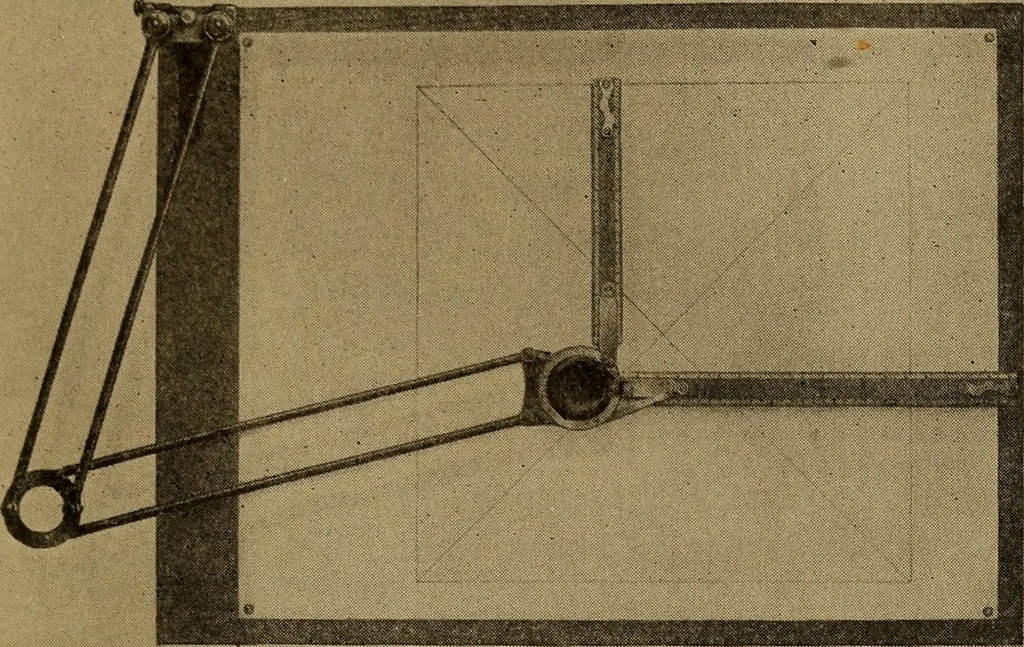

hored to the drawing-board asshown, gives the protractor and square a parallel motionabout the drawing. This form of parallel motion permitseither zero point on the ruling edges to be placed instantlyat any point on the drawing by a single direct movement,due to the fact that the arm formed by the… … Fig. 24. Universal Drafting Machine
