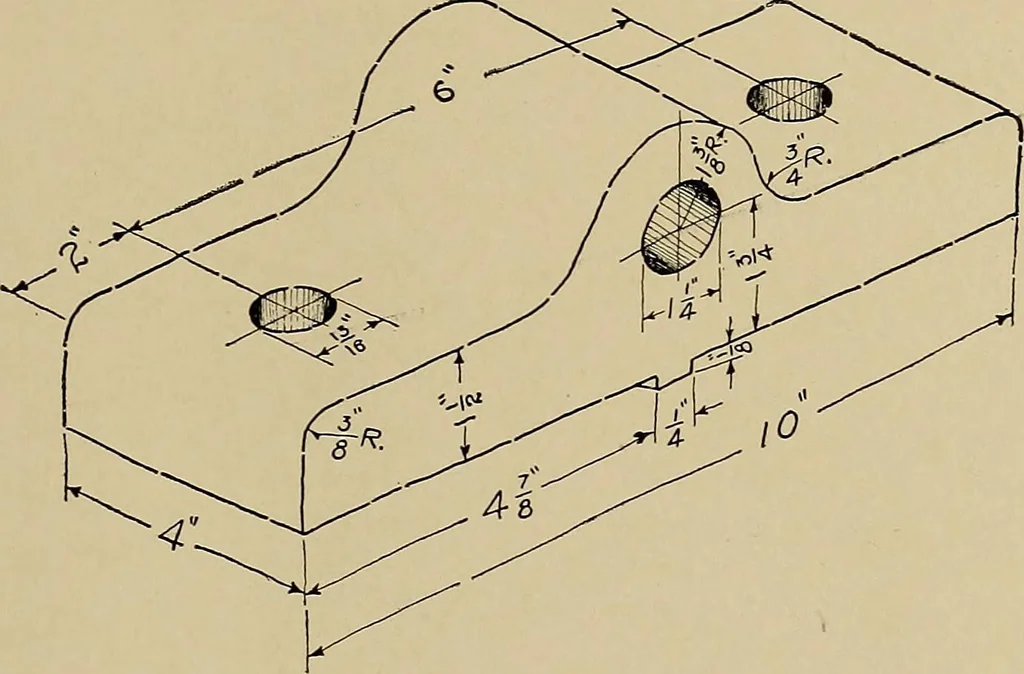

and oneend, say the three surfaces seen in the illustration. For the first view, choose the surface which seems to you mostlikely to be an aid in projecting the other views. In this case theside view showing the end of the feather key and the hole for theshaft is possibly the best view to begin… … class Industrial name John W.Roberts oate Feb-12-/5. The Carnegie Institute or Technology PITTSBURGH, PA. SCALE Shaft Support dws.ncC.I005 LESSON No. 13. TOOL REST.—This lesson is identical in character with Les-son No. 12; the purpose is the same—to give the student an oppor-tunity to strengthen…
