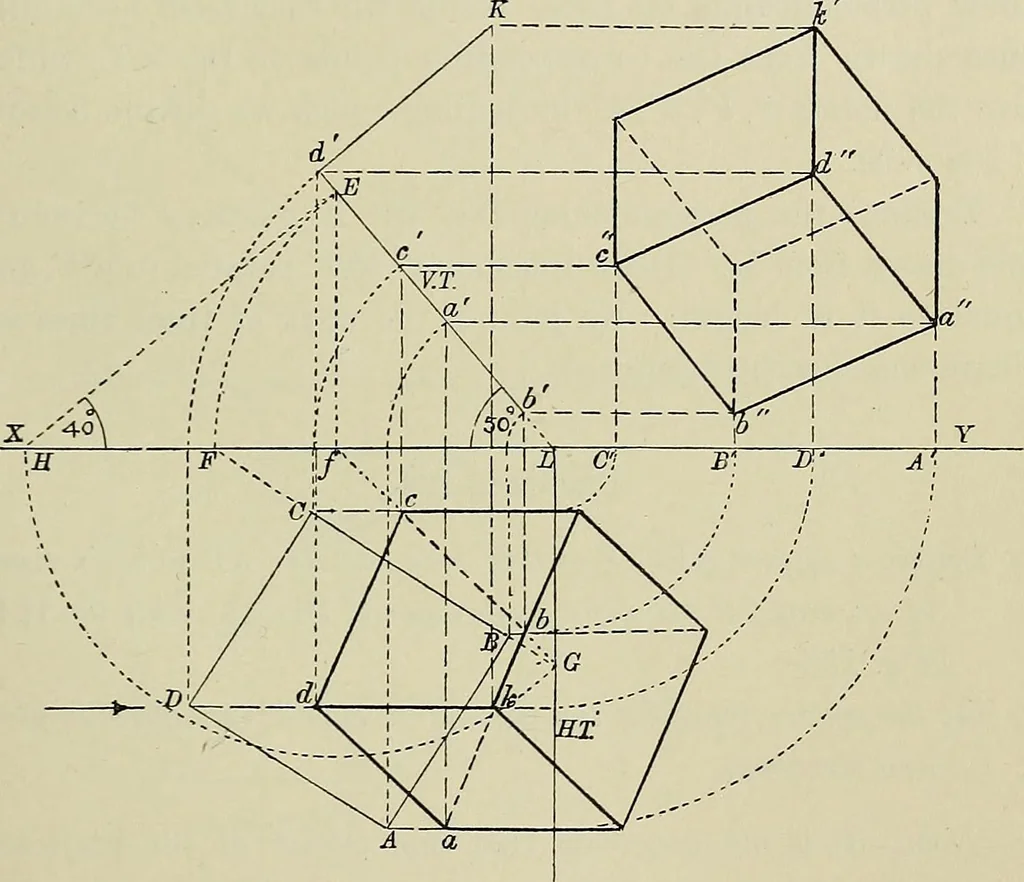

n angle of40° toith the H.P. Fig. 152. Scale ^ full size. On the 2^rojection of the square complete the plan of a cube. XXIX OBJECTS INCLINED TO THE H.P, AT CxIVEN ANGLES 337 3. Project an elevation of the same cute as seen in the directionof the arrow at J). 1. Determine the H.T. and V.T. of a… … Fig. 152. PGr its construction on the H.P. At any convenient pointC on PG set off CB 67 long, and on it complete the squareABCD. Determine the projections of the points a, h, c, cl (Prob. 122)and join them, which gives the projection of the square required. 2. Prom cl set off dli. perpendicular to…
