Mechanical drawing for industrial and high schools (1917)
Leeds, Charles Carley, 1870- [from old catalog] · New York, D. Van Nostrand company · leaf 86

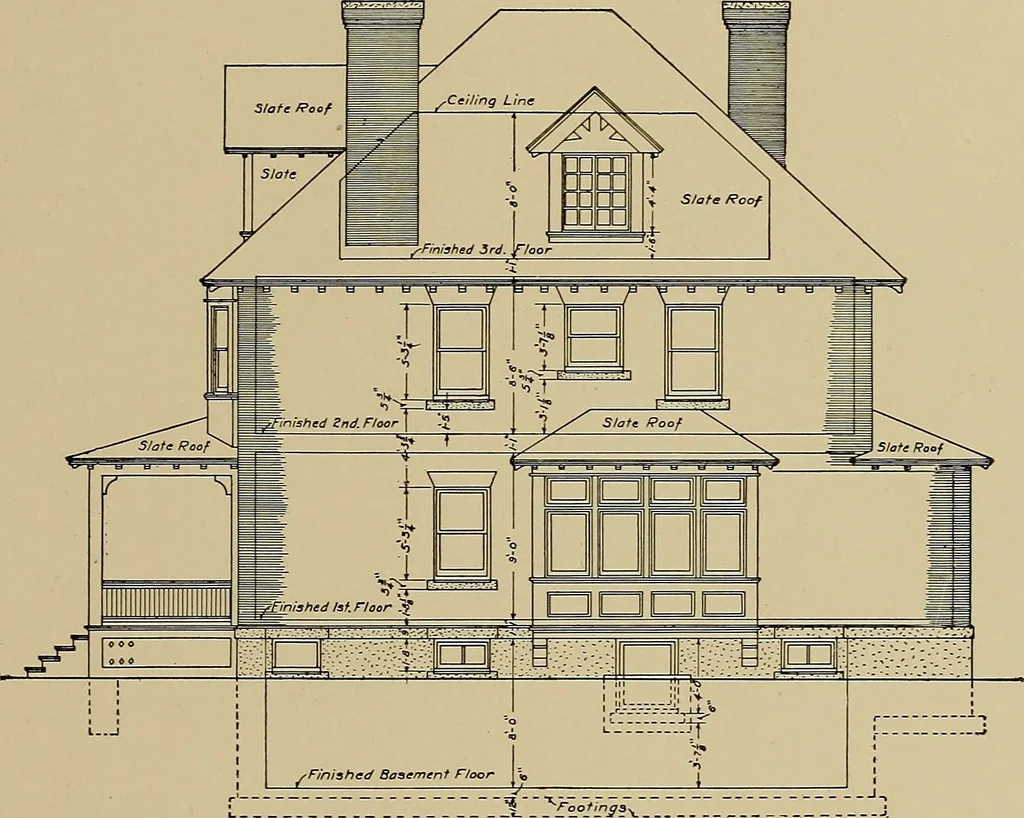

Fig. 24. LESSON No. 37—Continued. … Fig. 25. LESSON No. 37—Continued. the various measurements which are necessary, aside from theheights given on the elevation drawings. In the lessons which follow we shall take up floor plans only, asit is not deemed advisable to go into the subject to any greater extentin this series of lessons.…
Mechanical drawing
