How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 37

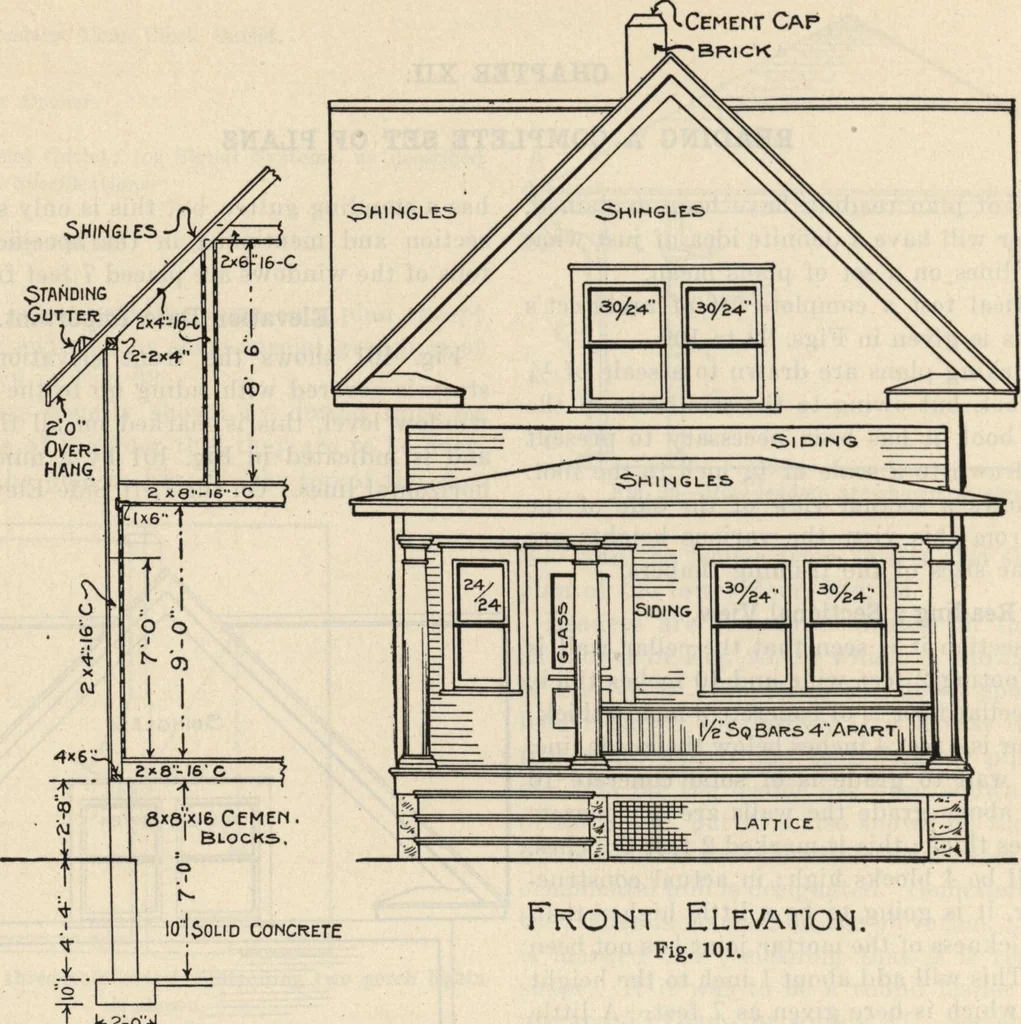

a representation of the clapboards andshingles would take up considerable time, and forthis reason it is not done, but the method of justmarking what it is, is followed. The same remarks also apply to the gables, hereonly a few shingles are sketched in and markedshingles, and this means that all of… … Front Elevation. Fig. 101. K2-o4 Fig. 100. Section Q.
Building materials, house plans · House contruction · Lumber
Internet Archive · Building Technology Heritage Library · Public Domain Mark 1.0. Free to use for anything.
