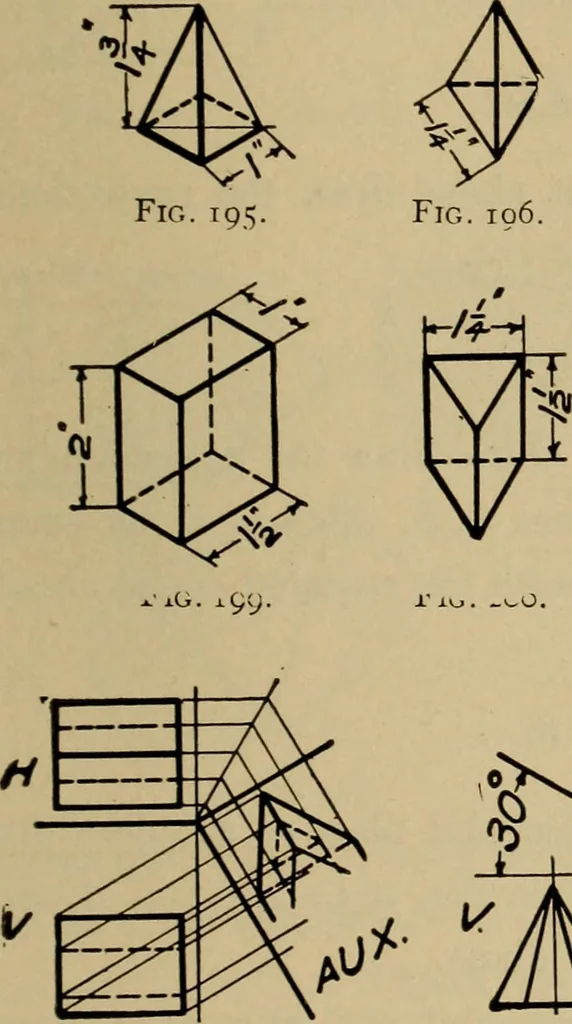

hrough an angle of 450.Draw the front elevation and plan. Problem 7. Given the end view of the pyramid obtained inproblem 4 when revolved through an angle of 300 to the left.Draw the elevation and plan. PROBLEMS IN MECHANICAL DRAWING. J53 Problem 8. Given the front elevation obtained in problem…
