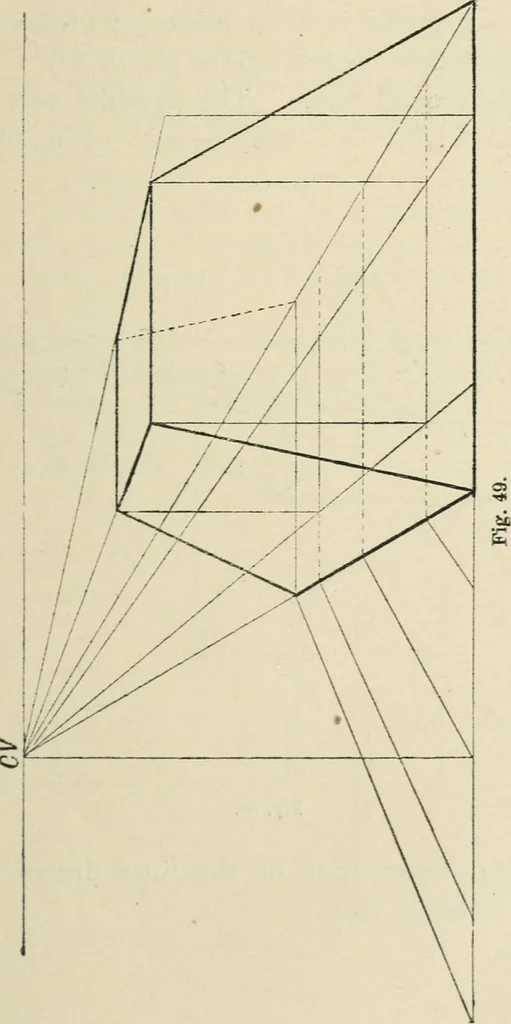

to left. 8. Draw same, directly in front, 3 from P.P. 9. Draw same, standing on a cylinder 4 in diameter and 4high, 3 to right and touching P.P. 10. Draw same, placed centrally on a cylinder of 5 in diam-eter, directly in front and touching P.P. 11. Draw a cone, base 4, slant height 4, lying on… … 84 DRAWING. Example 1.—Draw the frustum of a square pyramid, whosebases are 6 and 4 square, respectively ; the frustum touchesP.P. 4 to right, height 4. (Fig. 49.) From the above the method of drawing may be easilyunderstood. Example 2.—A pyramid with square base, each side ofwhich is 4, stands on…
