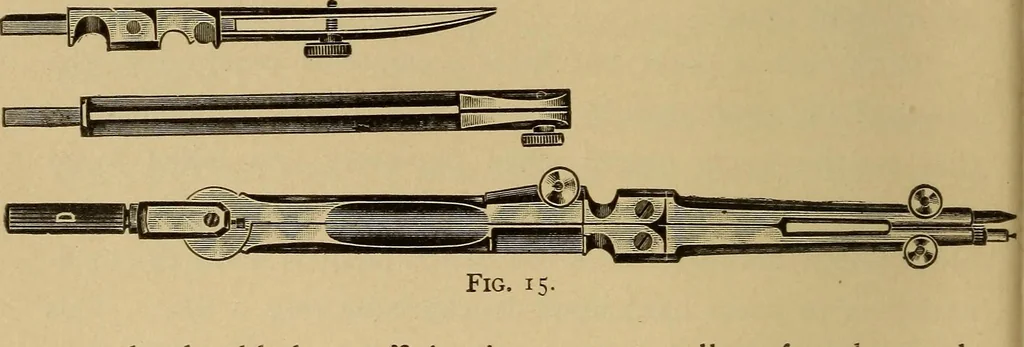

Fig. 14. … Fig. 15. spreads the blades sufficiently apart to allow for thoroughcleaning and sharpening. The hinged blade is thereforeunnecessary. The pen should be held in a plane passingthrough the edge of the T-square at right angles to the planeof the paper, and making an angle with the plane of thepaper…
