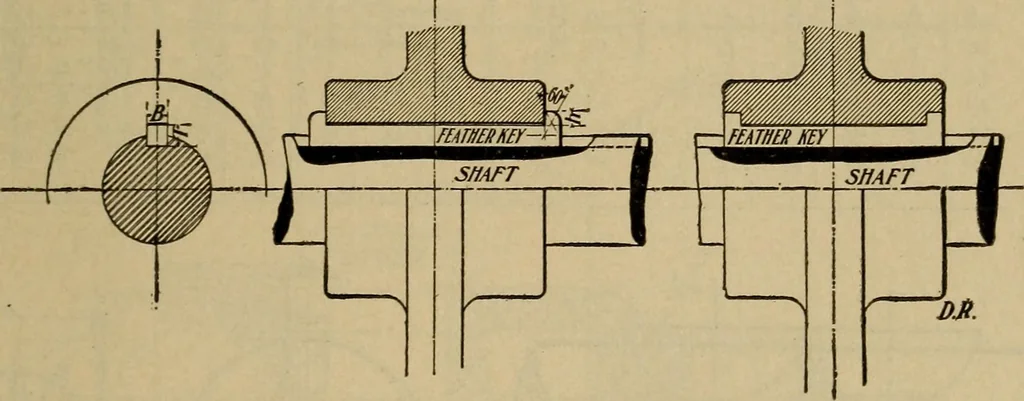

Fig. 333. Fig. 334. Sliding Feather Key.—This system of keying securesthe piece to the shaft, to transmit motion of rotation, and atthe same time allows the keyed-on piece to move along the … Fig. 335. Fig. 336. shaft. They may be secured to the keyed piece and slide ina groove on the shaft, as in Fig. 335, or secured to the shaftand slide in the groove in the keyed piece, as in Fig. 333.The dimensions for this form of key may be taken fromTable 7. Woodruff Keys.—This system of keying…
