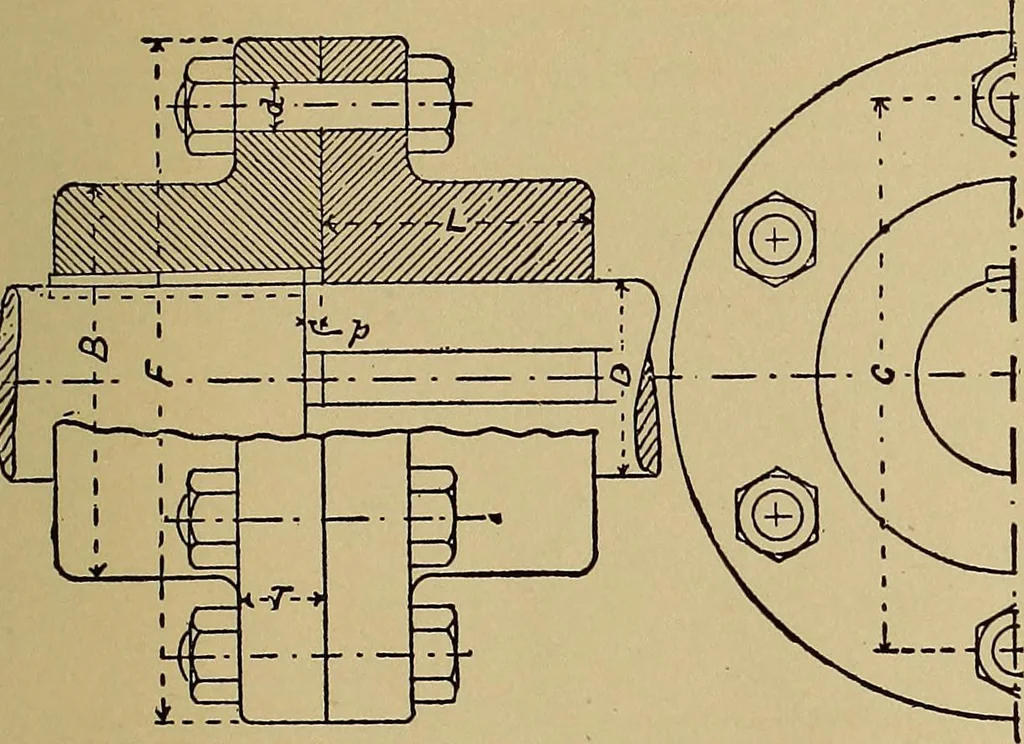

aft 5 inches in diameter, to thedimensions given in the above table. Scale—3inches to 1 foot. Proportions of Rivet Heads. The diameter ofthe snap head is about 1.7 times the diameter ofthe rivet, and its height about .6 of the diameter ofthe rivet. The conical head has a diameter twiceand a height… … Fig. 157—Cast-iron Flange Coupling. one and a half, and its depth a half of the diam-eter of the rivet. Table Showing the Proportions of Single EivetedLap Joints for Various Thicknesses of Plates. Thickness of plates. 5 /8 tV X 9 % 11 Diam. of rivetsPitch of rivets lA IH 2 2tV 1 2i ItV2X li 21…
