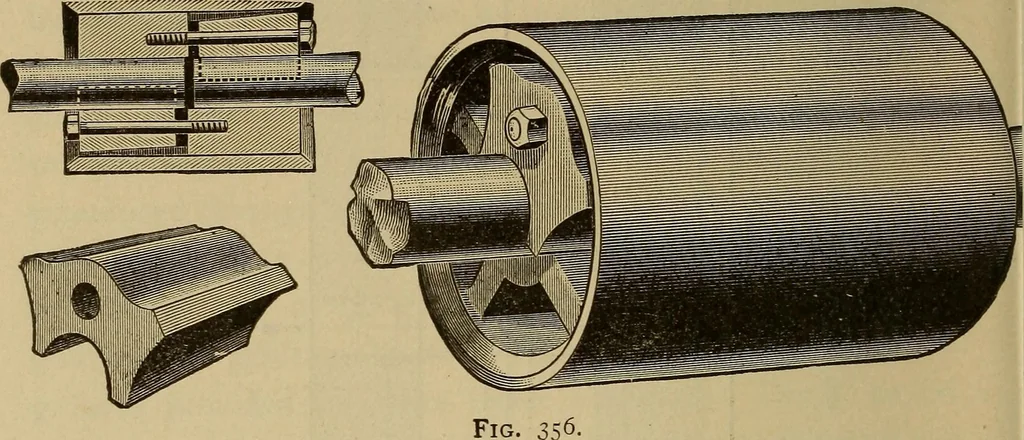

270 MECHANICAL DRAWING. Stuarts Clamp Coupling.—This coupling, shown in Fig.355, differs from the Sellers coupling in having tapered … wedges instead of conical sleeves; these tapered wedges andopposite halves of each end of the muff are bored to the sizeof the shaft. Studs and nuts hold the wedges in place,making, on the whole, a cheap and effective coupling withoutthe use of keys. The principal dimensions of this coupling for…
