Mechanical drawing. Elementary and advanced (1910)
Reid, John S. (John Simpson), 1856- · New York, J. Wiley & sons; [etc, etc.] · leaf 40

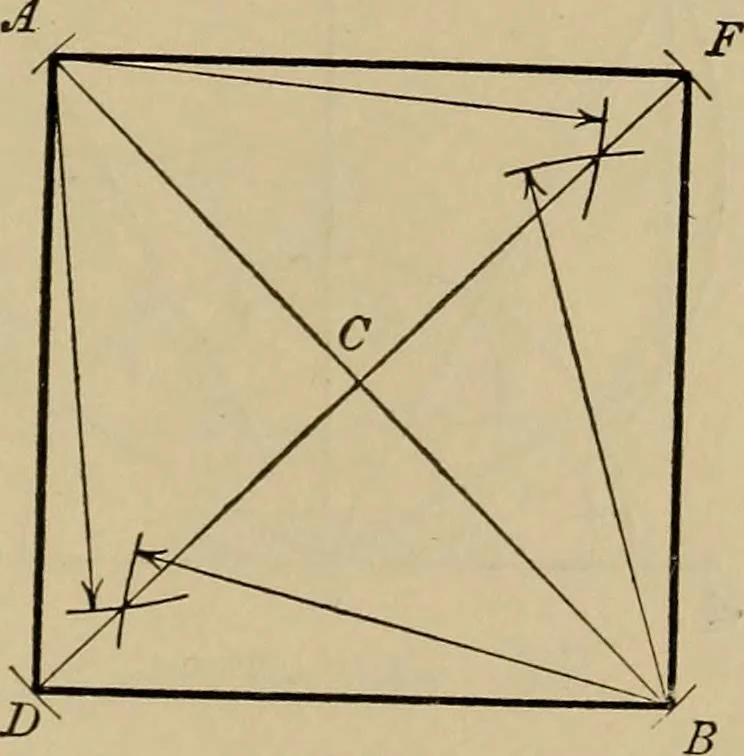

Fig. 36. … Fig. 37. Ffgb si! To Construct a Square, its Base ABErect a perpendicular at B. Make BC equal Fig. 36 BEING GIVEN 26 MECHANICAL DRAWING. to AB. From A and C with radius AB describe arcs cuttingin D. Join DC and DA. Fi*gb* 37. To Construct a Square, given its Di-agonal AB.—Bisect AB in C. Draw Z)/7…
