Mechanical drawing. Elementary and advanced (1910)
Reid, John S. (John Simpson), 1856- · New York, J. Wiley & sons; [etc, etc.] · leaf 52

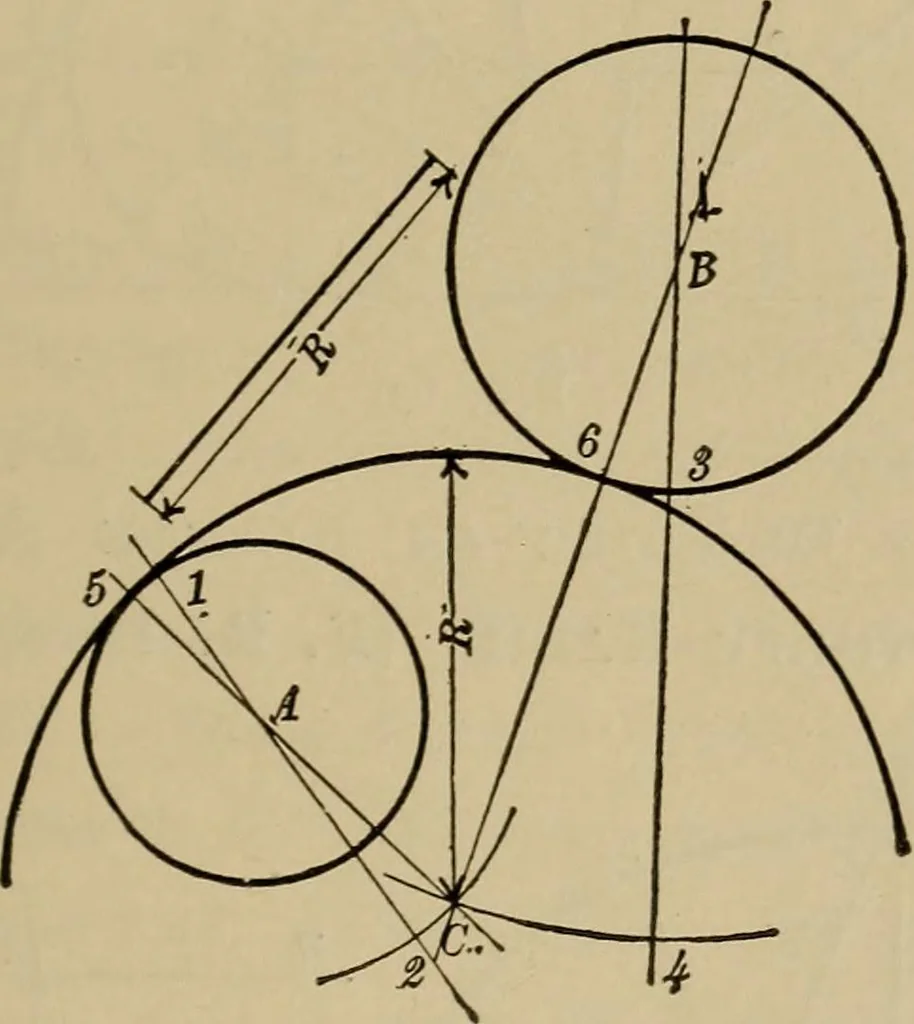

the distances 1-2 and 3-4, each equal inlength to the given radius R. Then with center A and radiusA2y center B and radius £4, describe arcs cutting at C. FromC draw £~5 and C6 through B and A. With center C and ra-dius C6 or C$ describe the arc 6, 5, which will be tangent tothe circles at the… … Fig. 62. From B draw any radius and extend it, making 3-4 = R. Withcenter A and radius A2 and center B and radius B4 describearcs cutting at C. With C as center and radius = C$ or C6describe the arc 5, 6. Fi|b 63! Draw an Arc of a Circle of Given Ra-dius R tangent to a Straight Line AB and a…
