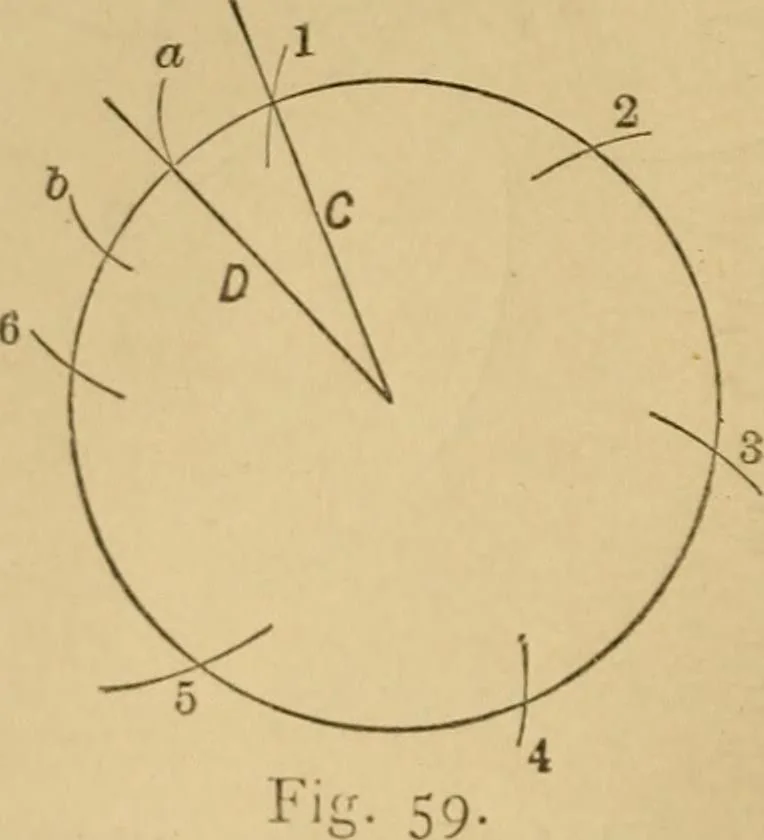

may be divided as follows : The com-passes set to its radius, or half its diameter, willdivide the circle into 6 equal divisions, and each ofthese divisions will contain 60 degrrees of anele, be-cause 360 (the number of degrees in the wholecircle) -v-6 (the number of divisions) =60, the numberof… … it is required to find their angle one to the other.The circle is divided into six divisions, marked re-spectively from I to 6, the division being made from LINES AXD CURVES. 57 the intersection of line C with the circle. As both linesfall within less than a division, we subdivide thatdivision as…
