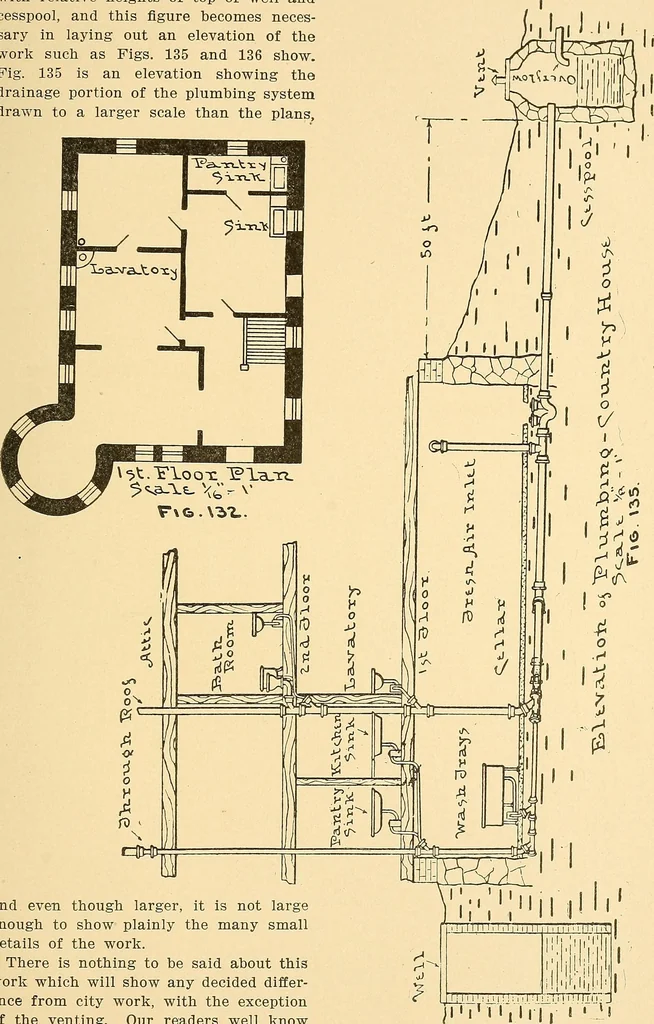

hat, but where such a dimen-sion is given it is always to be followed,and no attention paid to the distance thatthe regular scale would give. Fig. 134gives a plain elevation of the residence, 102 MECHANICAL DRAWING FOR PLUMBERS 103 with relative heights of top of well andcesspool, and this figure… … and even though larger, it is not largeenough to show plainly the many smalldetails of the work. There is nothing to be said about thiswork which will show any decided differ-ence from city work, with the exceptionof the venting. Our readers well know 104 MECHANICAL DRAWING FOR PLUMBERS that as a…
