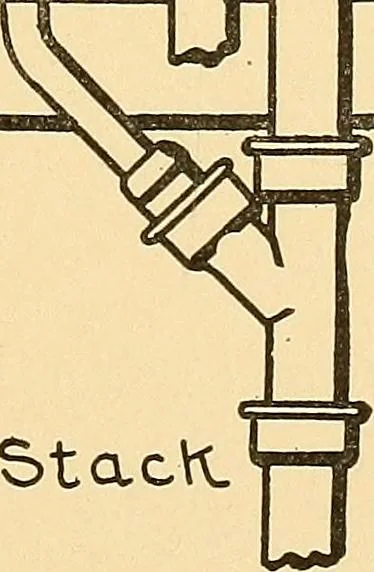

-fc … 4-> J Stacft. Figure 19—Showing an Elevation of a Common Kitchen Sink location of fixtures and soil, waste andvent lines, leaving the plumber to put inhis connections according to his ownideas. However, on many of the best jobsnowadays, architects are giving an eleva-tion, showing the manner in…
