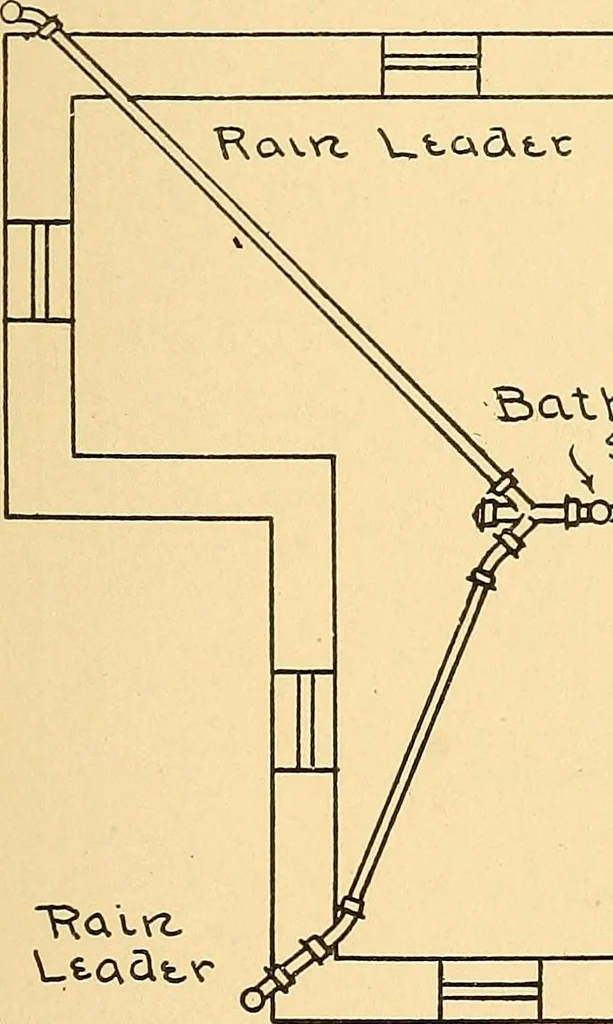

he can lookto for help. Indeed, in a great many cases he doesnot need any further help. On the otherhand, in a great many cases mere isabundant use for a special drawing onthe plumbing work of a building, andsuch a thing would often be of serviceto the plumber and to the architect andowner as well.… … h=& ?<-fc^Vt cut \rc.\vt i ffiqEHgn] a Rcurc. raoart. Tva^ / Fig. 20—Showing Cellar Plan. Scale i^-inch to I foot. as are usually drawn up by the architecthaving the work in charge, and such, nodoubt, as most of our readers are entire-ly familiar with. These views are what the plumber…
