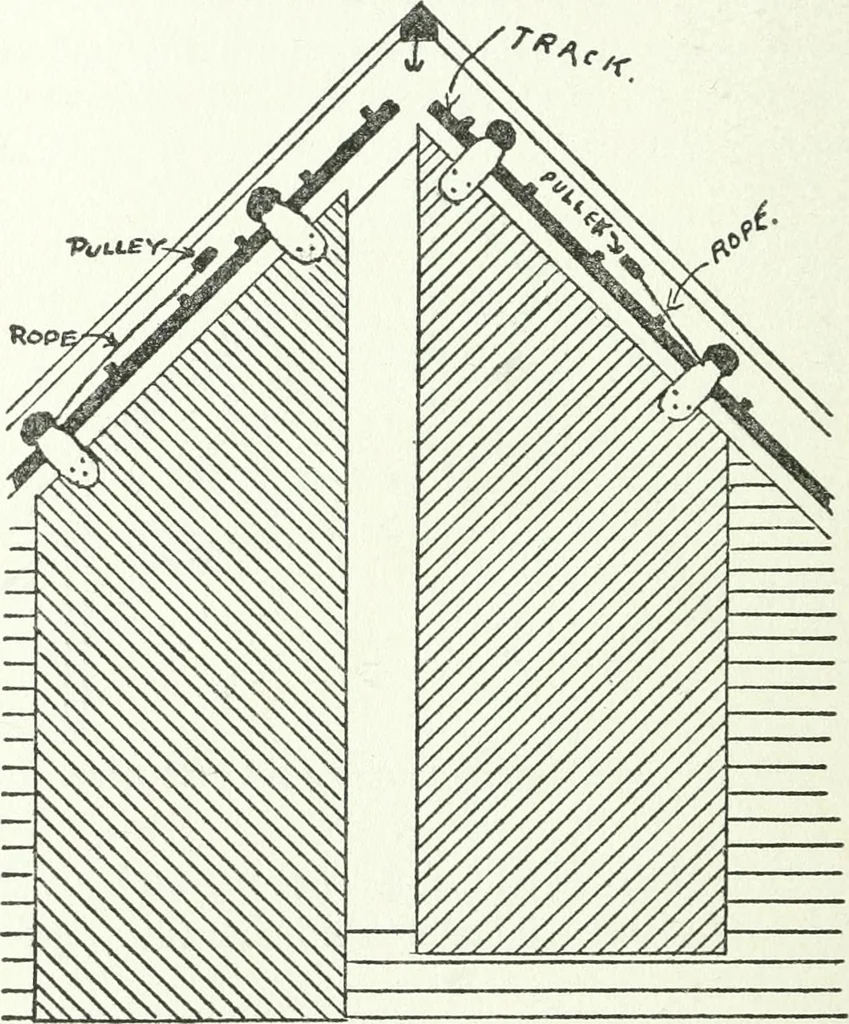

and lie flat againstthe wall. To fasten the doors open, make a double-ended spiked pole, with which press the outeror top fold of the door up firmly against thefascia, seating the lower end of spiked pole nearthe bottom of the door. There should be a 2by 4 or a 2 by 6 bar across the opening to… … Pig. 144. Weighted Doors on Inclined Tracks. Any flat barn-door track will do. A %-inchrope is tied to the lower hanger and run througha 5-inch wooden pulley set in rafter; from thereit is run down inside of rafter 3 or 4 feet toanother pulley; and from there to a small FRAMING 271 weight below,…
