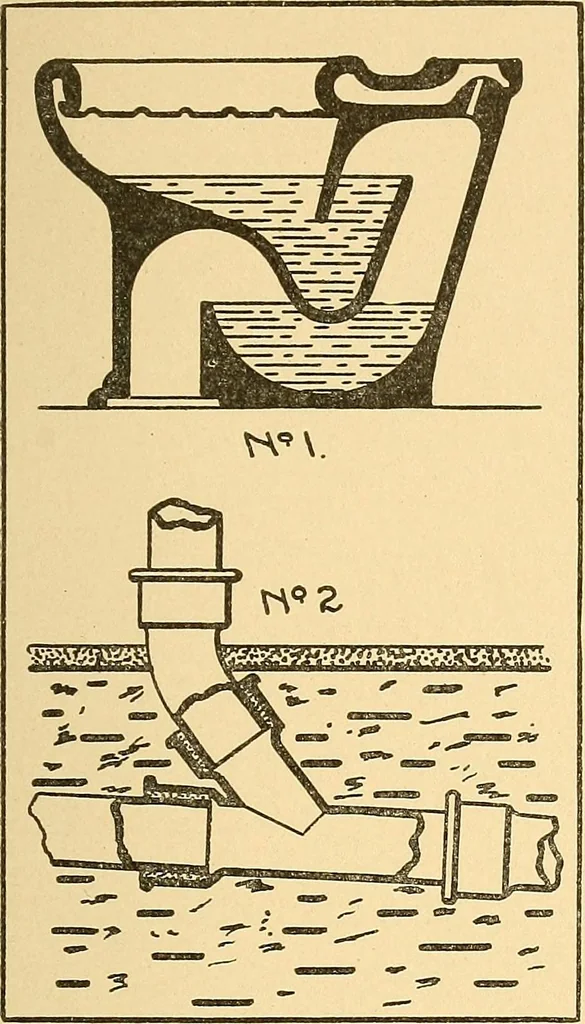

Y\c^.6b. tion the working parts have been drawnplain, and not in section. The idea is al-ways to make any drawing show the ob-ject it is made to represent with thegreatest possible amount of clearness,.andit will be found in this case that the bibbis shown much more clearly by leavingthe working… … FlGi.bT. tioning them in the manner that the restof the bibb is seen. No. 1 of Fig. 67 represents a sectionalview of a certain type of water closet. Inthis case the whole section is of one pieceonly, and in such a case, a solid blacksection looks well. This could not be sec-tioned in this manner if…
