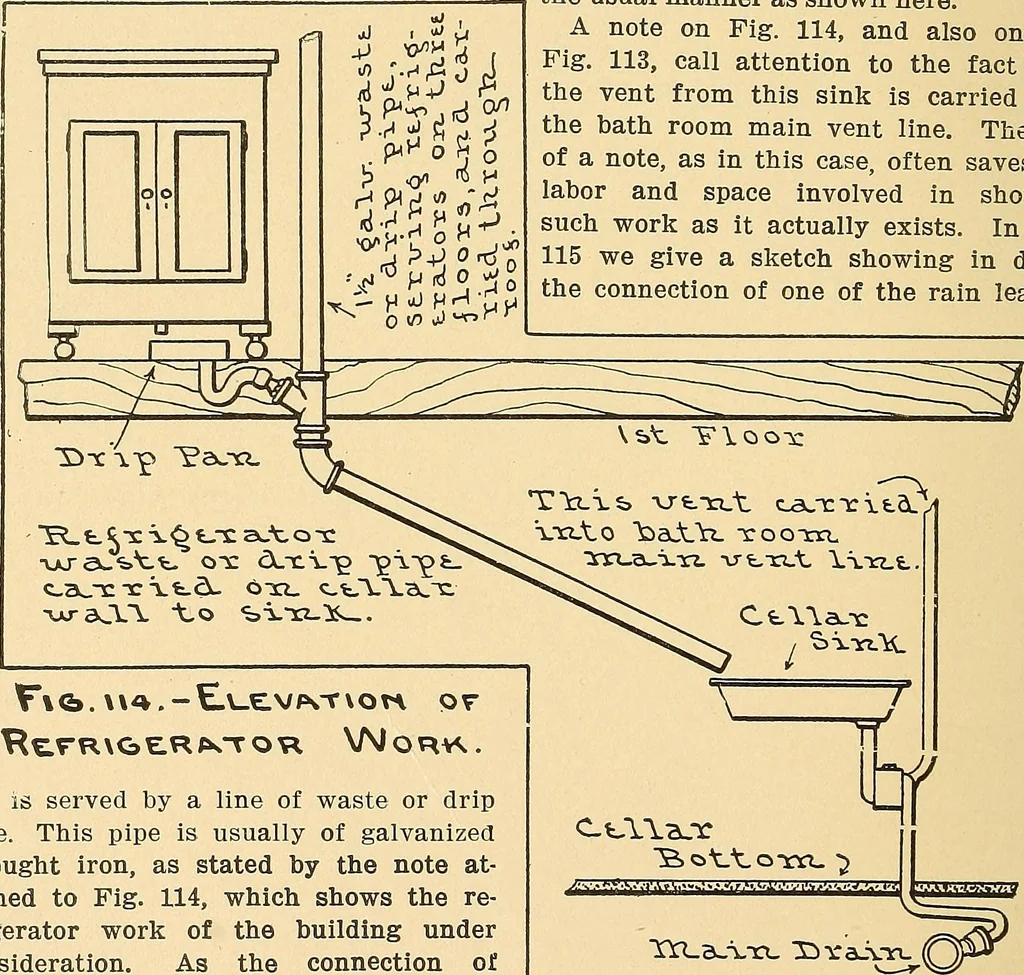

ed at the sink, simply carrying thedrip from the refrigerators into the sink,and the sink being trapped and vented inthe usual manner as shown here. A note on Fig. 114, and also one onFig. 113, call attention to the fact thatthe vent from this sink is carried intothe bath room main vent line. The… … R€.rR\Q>E.RP^TOR VSJora*. ing is served by a line of waste or drippipe. This pipe is usually of galvanizedwrought iron, as stated by the note at-tached to Fig. 114, which shows the re-frigerator work of the building underconsideration. As the connection ofeach of the two refrigerators on the…
