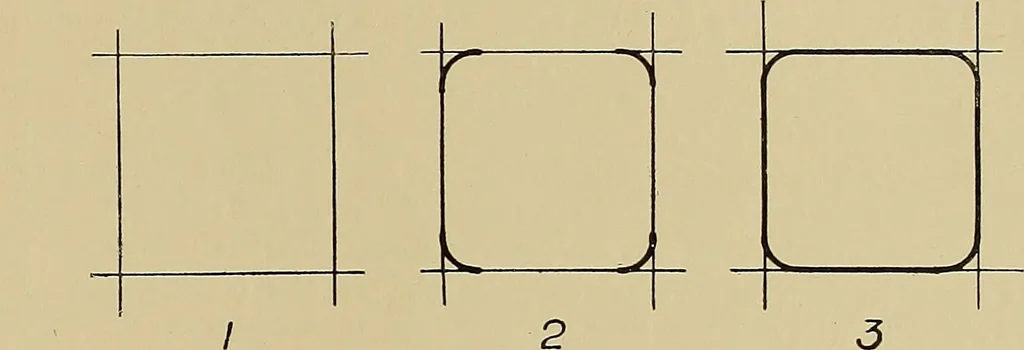

diffi-cult to draw correctly. SQUARE.—Construct a 3-inch square, using the T square andtriangle. The square to have rounded corners of J-inch radius, madewith the bow-pencil compass. The finished square should be lined in so that there are novisible joints. Where rounded corners join straight lines… … Fig. 13. The student should observe that in the illustration, Fig. 13, thesquare is first laid out in faint construction lines, then the corners arerounded, and, finally, the sides are lined in. The rounded corner lines should be made as heavy as it is desiredto make the rest of the outline, so…
