Mechanical drawing self-taught: comprising instructions in the selection and preparation of drawing instruments, elementary instruction in practical mechanical drawing together with examples in simple geometry and elementary mechanism, including screw threads, gear wheels, mechanical motions, engines and boilers (1883)

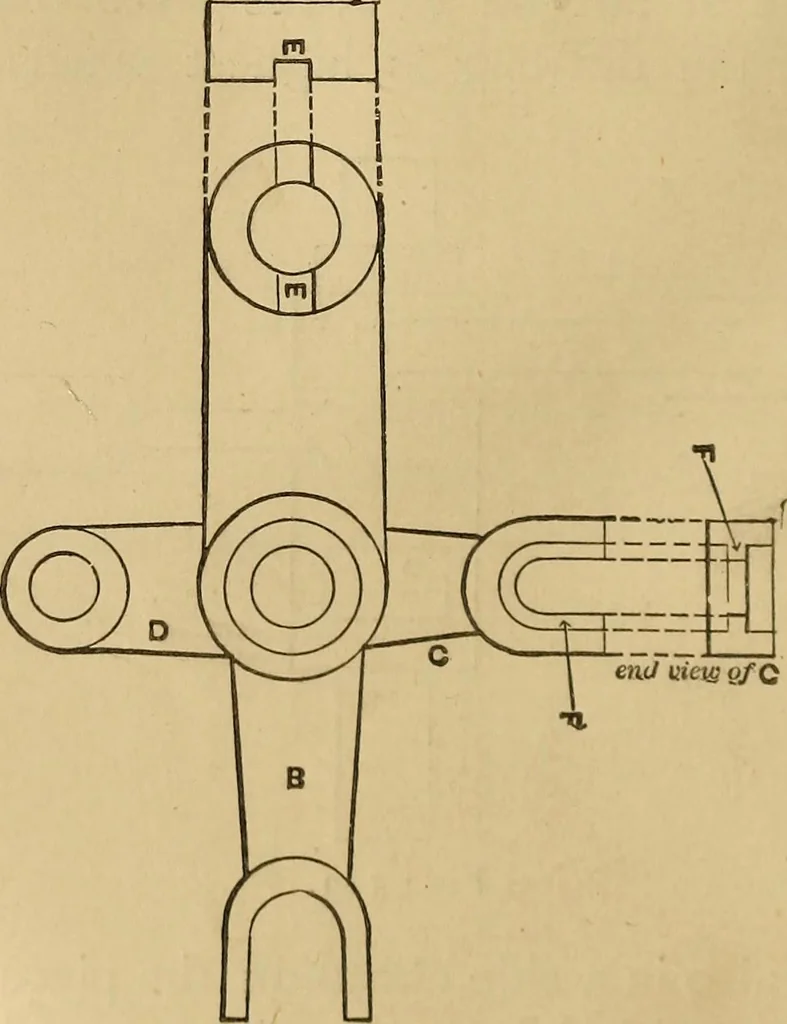

dimensions could be marked if an additional view were given, but this will not be the case if an eye ;o6 MECHANICAL DRAWING SELF-TAUGHT. have a slot in It, as at E, In Figure 144, or a jaw havea tongue in it, as at F: hence, end views of the eyeand the jaw must be given, which may be most… … Fig. 144. As a general rule, the side elevation or side view isthe most Important, because It shows more of theparts and details of the work ; hence it sliould bedrawn first, because it affords more assistance Indrawinof the other views. There are two systems of placing the different views THE…
Mechanical drawing
