Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 308

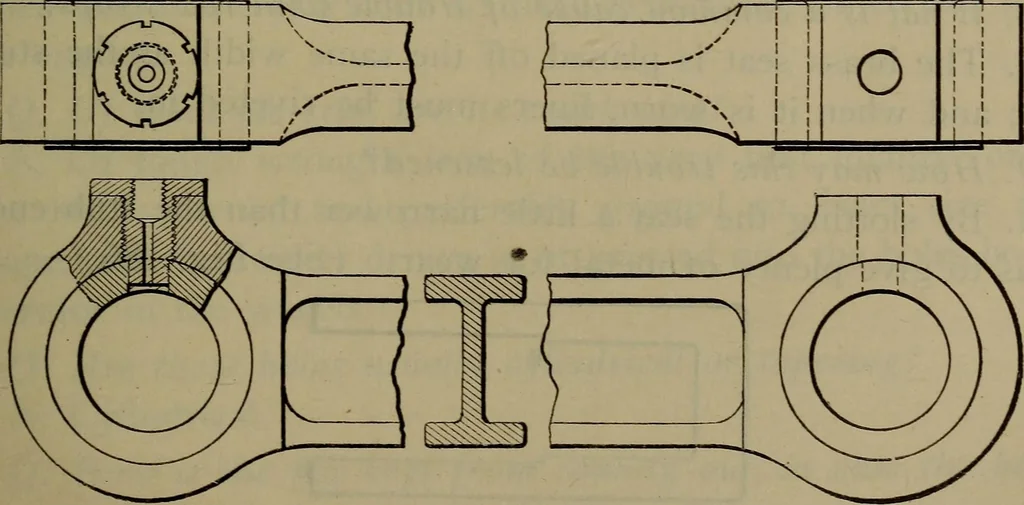

Fig. 184. Strap Joint. A. The bolt must be loosened up first, else it cannot bekeyed up. 0. In what position and condition should the engine be forsetting up the front end main-rod brasses? A. On the lower quarter and no steam on, so that the rod … Fig. 185. Rod Ends. 302 LOCOMOTIVE CATECHISM. hangs on the front section of the brass, and only the backbrass section need be moved; further, the brass will be keyedto the largest part of the wrist pin. 0. For both ends? A. On the center, especially where the pins are out of round. Q. How about…
Locomotives
