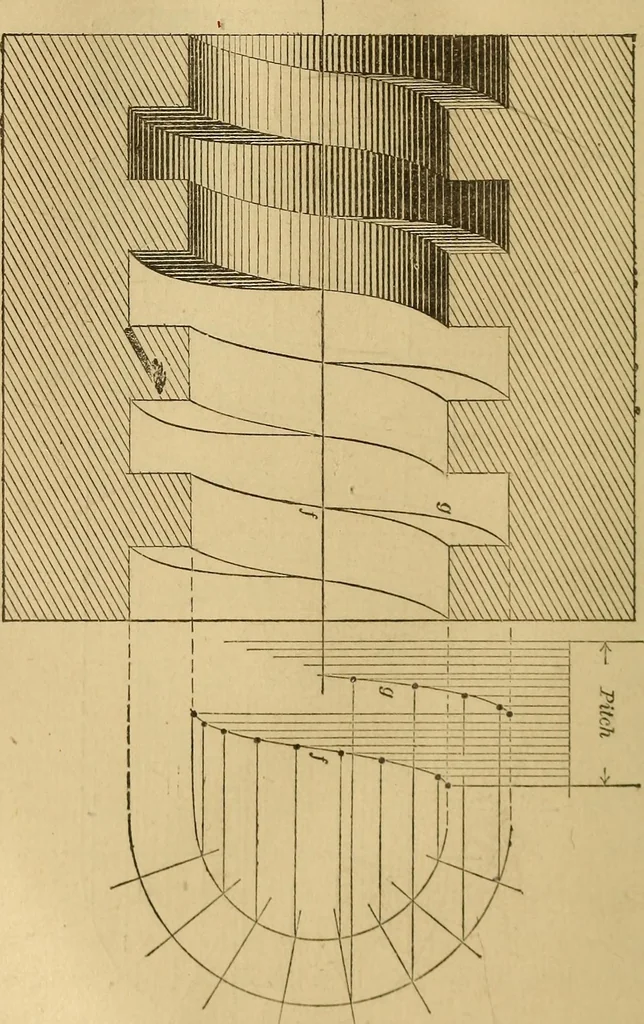

nate at the centre line^, and the curves e are equi-distant with the curves c from the vertical lines d. As :64 MECHANICAL DRAWING SELF-TAUGHT. the curves f above the Hne are the same as f belowthe line, the template for f need not be made to ex-tend the whole distance across, but one-half only; as … is sliown by the dotted curve ^«,-, in the construction forfinding the curve for square-threaded nuts in Fio-ure 2 I 2. SCREJV THREADS AND SPIRALS. i5t A Specimen of the form of template for drawingthese curves Is shown In Figure 213 ; g g, Is the cen-tre Hne parallel to the edges R, S; lines m, n,…
