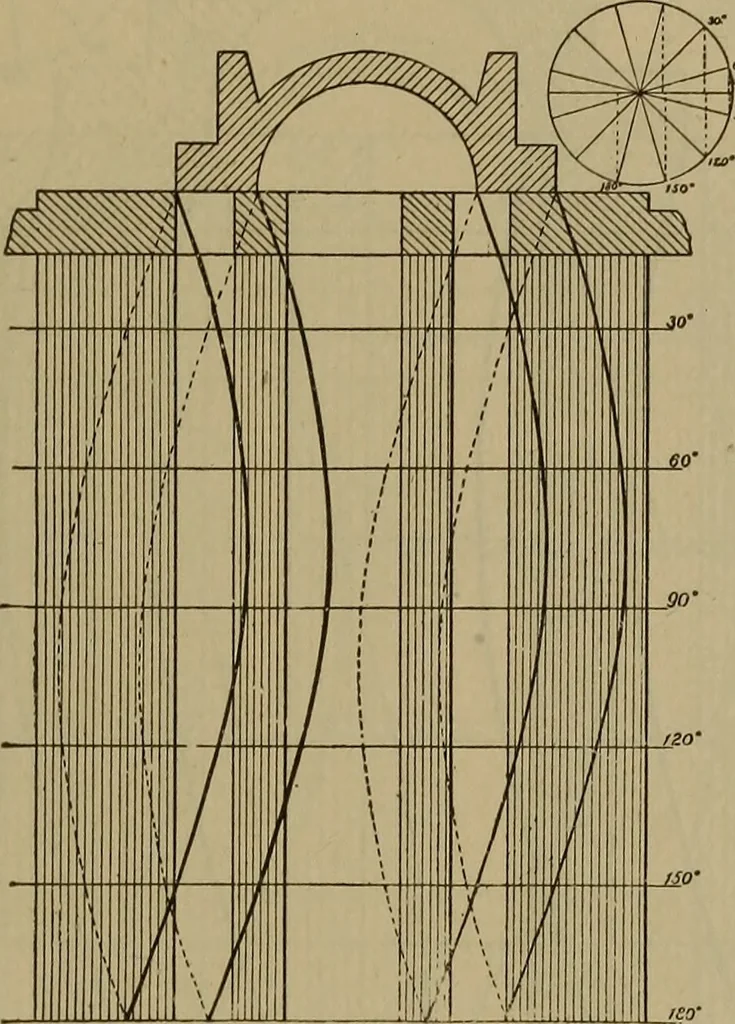

VALVE-GEARING. ^73 from its central position be laid off at right angles to the lineand upon the same scale, the curve drawn through the ex-tremities of the lines which represent the motion of the valvewill be called a motion-curve, and was early suggested byUhland. If, instead of developing the… … Fig. 1-34. drawn perpendicularly through the four edges of the steam-port and the two edges of the exhaust-port, as in Fig. 133,and the valve-section be sketched in its central position, it willbe easily possible to describe by points the four niotion-curvesfor the effective edges of the valve…
