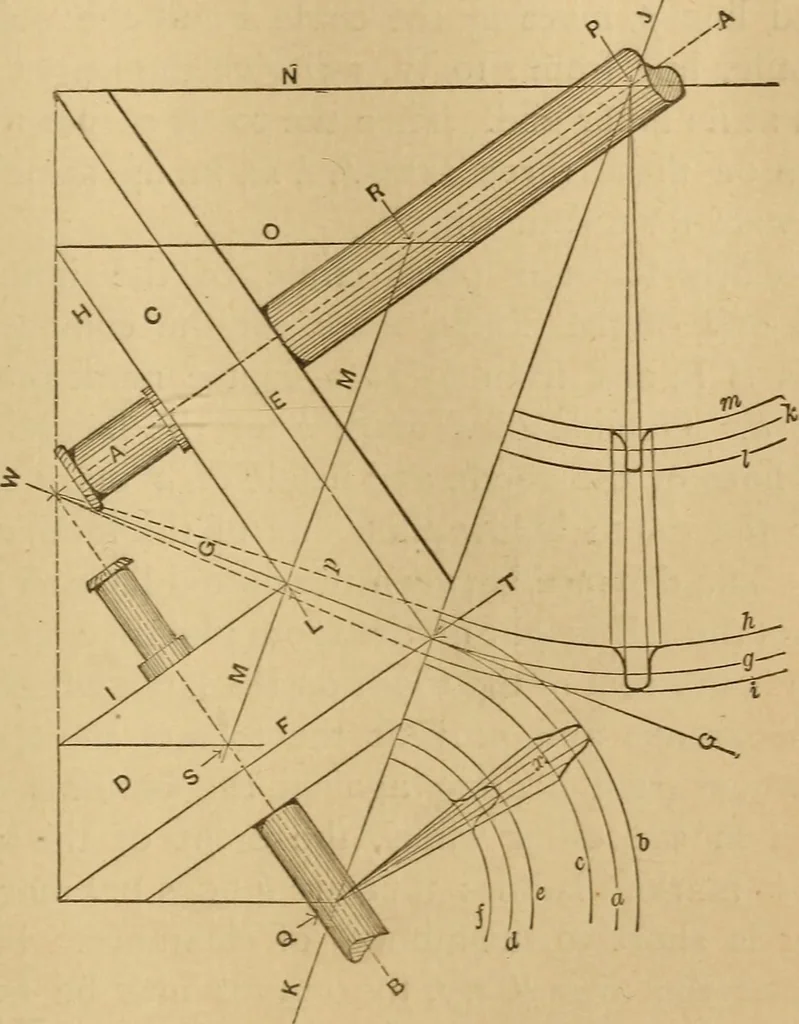

and below the pitch line G G. At a rigluangle to G G draw the line J K ; and from where thisline meets B, as at O, mark the arc a, which will repre-sent the pitch circle for die large diameter of the pinion DAAUIXG GEAR WHEELS. 20; D. [The smallest wheel of a pair of gears is terniedthe pinion.]… … Fig. 242. and {, arc g representing the pitch circle, i the height,and h the depth of the tooth. On these arcs drawthe proper tooth curves in the same manner as for■spur wheels; that is, obtain the curves by the construe- 2o6 MECHANICAL DRAWING SELF-TAUGHT. tion shown In Figures 237, or by those In…
