Leeds, Charles Carley, 1870- [from old catalog] · New York, D. Van Nostrand company · leaf 80

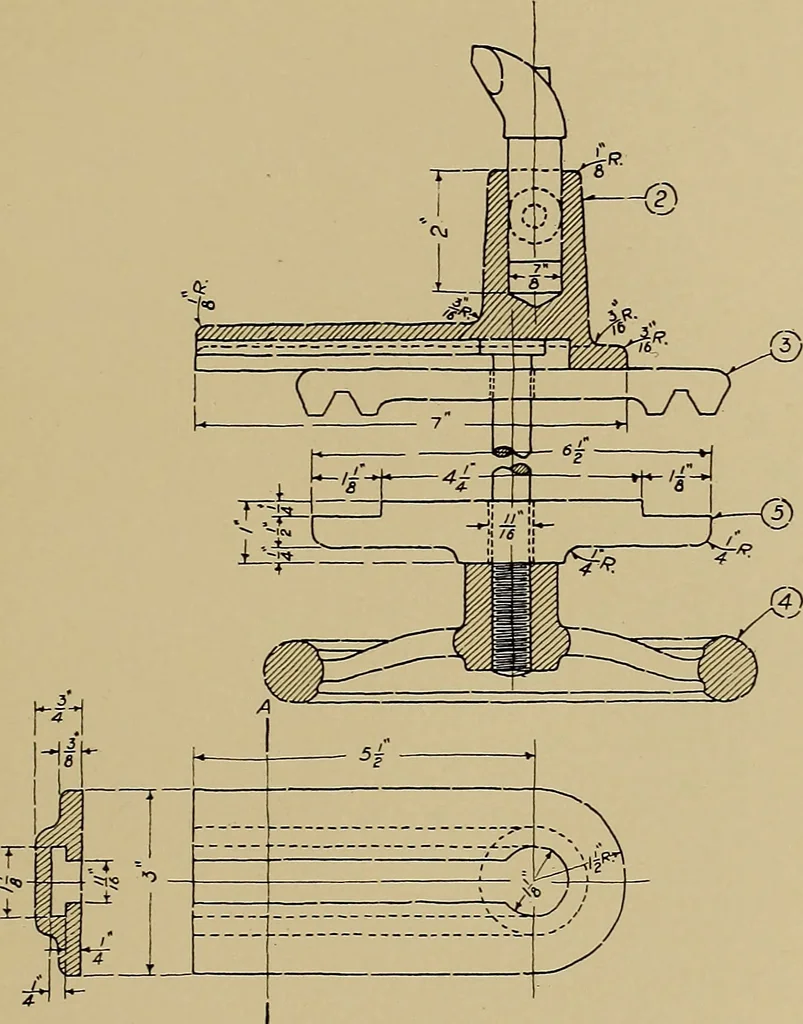

chined from Drawing C-1028. This assemblydrawing is, therefore, used as a detail drawing also, as the stand andclamp may be machined from it. When drawing the parts that are not dimensioned, the student mustnecessarily refer to the detail drawing to obtain the sizes needed. Study the drawing… … Section A.B De/a/l of Stand Drill^-Tapi-16 Thds.
Mechanical drawing
