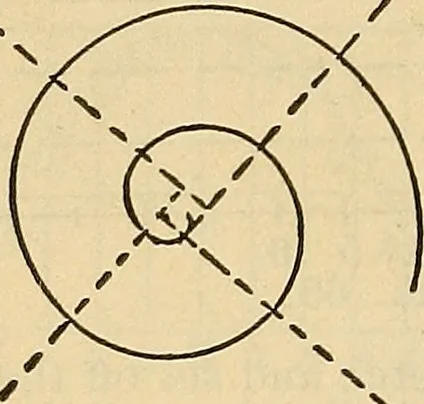

Fig. 64. the distances 1, 2, 3, 4, etc .curve is drawn, as shown in Fig. … In the common spiral (Fig. 64) thepitch is uniform; that is, the spiresare equidistant. Such a spiral ismade by rolling up a belt of uniformthickness. To construct a spiral with fourcentres (Fig. 65). — Given thepitch of the spiral, construcfa squareabout the centre, with the sum ofthe four sides…
