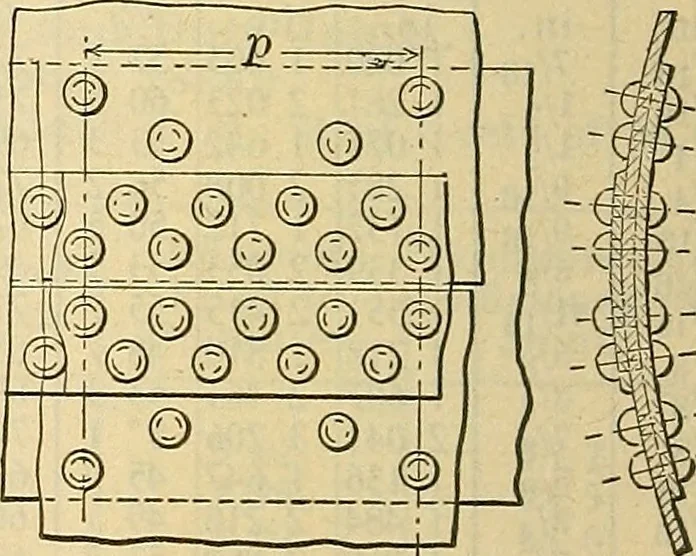

g a line, through the outer row of rivets, 2. By shearing the rivets, 3. By crushing the plate or the rivets.Let t = the thickness of the main plates. d = the diameter of the rivet-holes. / = the tensile strength of the plate in pounds per sq. in. s = the shearing strength of the rivets in pounds… … Fig. 90.Triple Riveting. Fig. 91.Quadruple Riveting. the pitch of the inner rows in triple butt strap riveting, in which alter-nate rivets in the outer row are omitted, = four times the pitch in quad-ruple butt strap riveting, in which the outer row has one-fourth of thenumber of rivets of the two…
