The mechanical engineer's pocket-book. A reference-book of rules, tables, data, and formulæ, for the use of engineers, mechanics, and students (1910)
Kent, William, 1851-1918 · New York, J. Wiley & sons · leaf 92

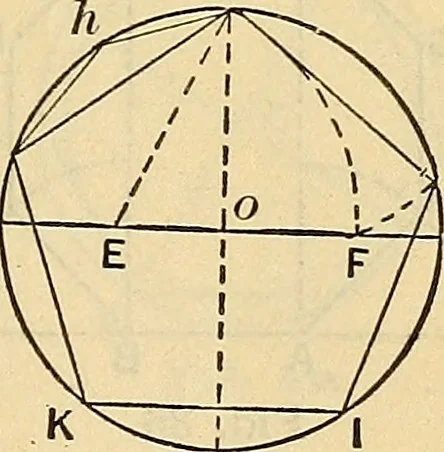

31. To inscribe a pentagon ina circle (Fig. 31). •— Draw diam-eters A C, B D at right angles, cut-ting at o. Bisect A o at E, and fromE, with radius E B, cut A C at F;from B, with radius B F, cut thecircumference at G, H, and with thesame radius step round the circle to/ and K; join the points so… … 32. To construct a pentagonon a given line A B (Fig. 32).—From B erect a perpendicular B Chalf the length of i 5; join A C and.prolong it to D, making C D = B C.Then B D is the radius of the circlecircumscribing the pentagon. FromA and B as centres, with B D asradius, draw arcs cutting each otherin…
Mechanical engineering
