The mechanical engineer's pocket-book. A reference-book of rules, tables, data, and formulæ, for the use of engineers, mechanics, and students (1910)
Kent, William, 1851-1918 · New York, J. Wiley & sons · leaf 96

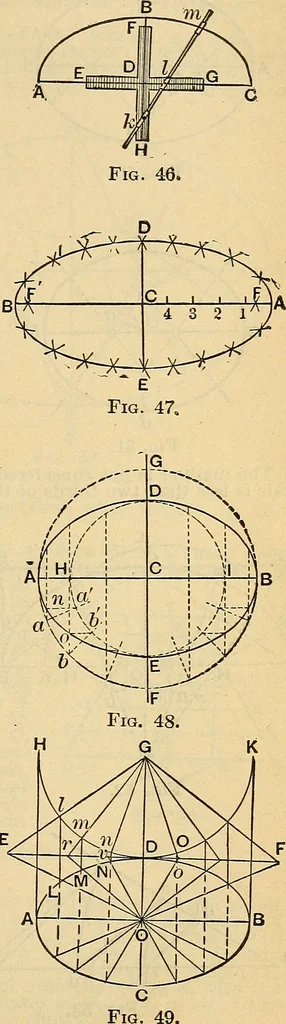

When thetransverse and conjugate diametersare given, AB,C D, draw the tangentEF parallel to A B. Produce CD,and on the centre G with the radiusof half A B, describe a semicircleH D K; from the centre G draw anynumber of straight lines to the pointsE, r, etc., in the line E F, cutting… … 4S GEOMETRICAL PROBLEMS. ^-~~c c \ V \ 077i /eV D Fig. 50.
