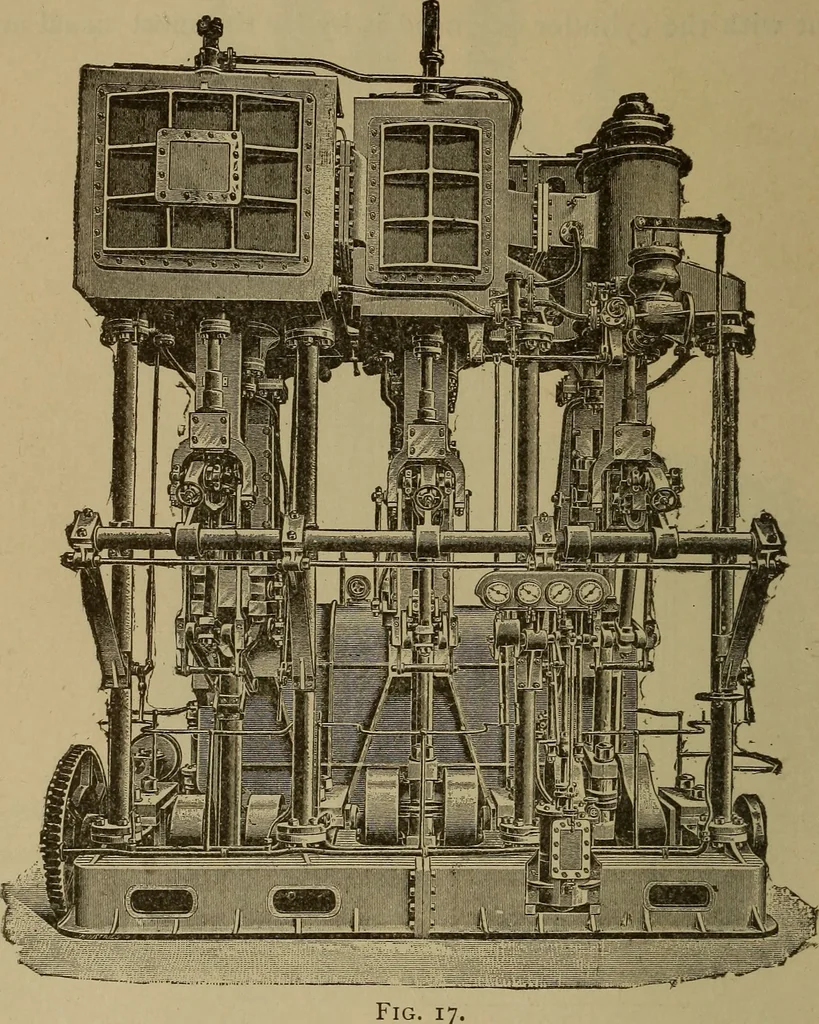

ted vertical type. The general advan-tage of this arrangement is that the moving reciprocatingparts, which are those whose inertia or living force must betaken up by solid connection and for which the crank-pin mustprovide, are held to the ground through the crank-shaft di- 34 MECHANICAL… … The cylinder furthermore, is not a moving part. Fig. i6Illustrates a typical inverted vertical engine of this sort. For certain uses the inverted vertical arrangement is spe-cially adapted by reason of the location of the engine-shaftnear the base. It is this condition which has made this…
