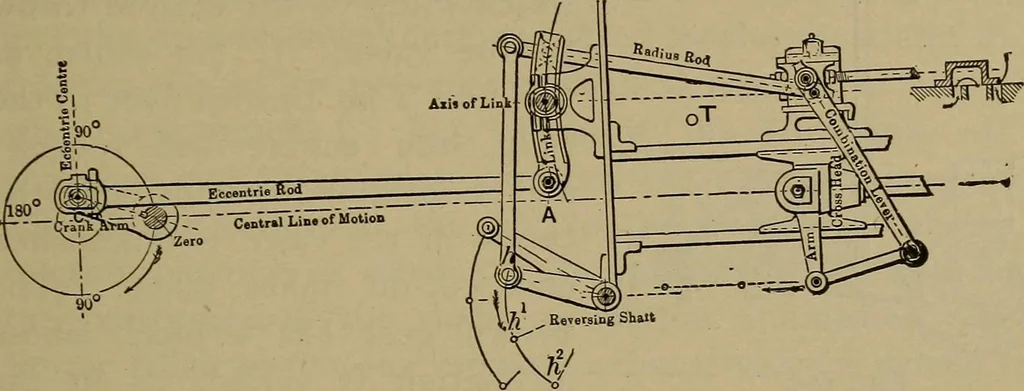

locomotive-builders is a Swiss motion whichbears the above name of its inventor. Fig. 194 shows thatthe double motion is derived partly from the engine cross- REVERSING VALVE-GEARS, LINK-MOTIONS. W head and partly from a crank or eccentric 900 from the mainengine-crank. The valve gets an aggregate… … Fig. 194. of motion, of the curved link. It will be seen that such agear produces no variation in the lead. The valve-motion designed for locomotives by Mr. GeorgeS. Strong has many features similar to the foregoing. Themotion is obtained from a single eccentric, which has twolevers attached to the…
