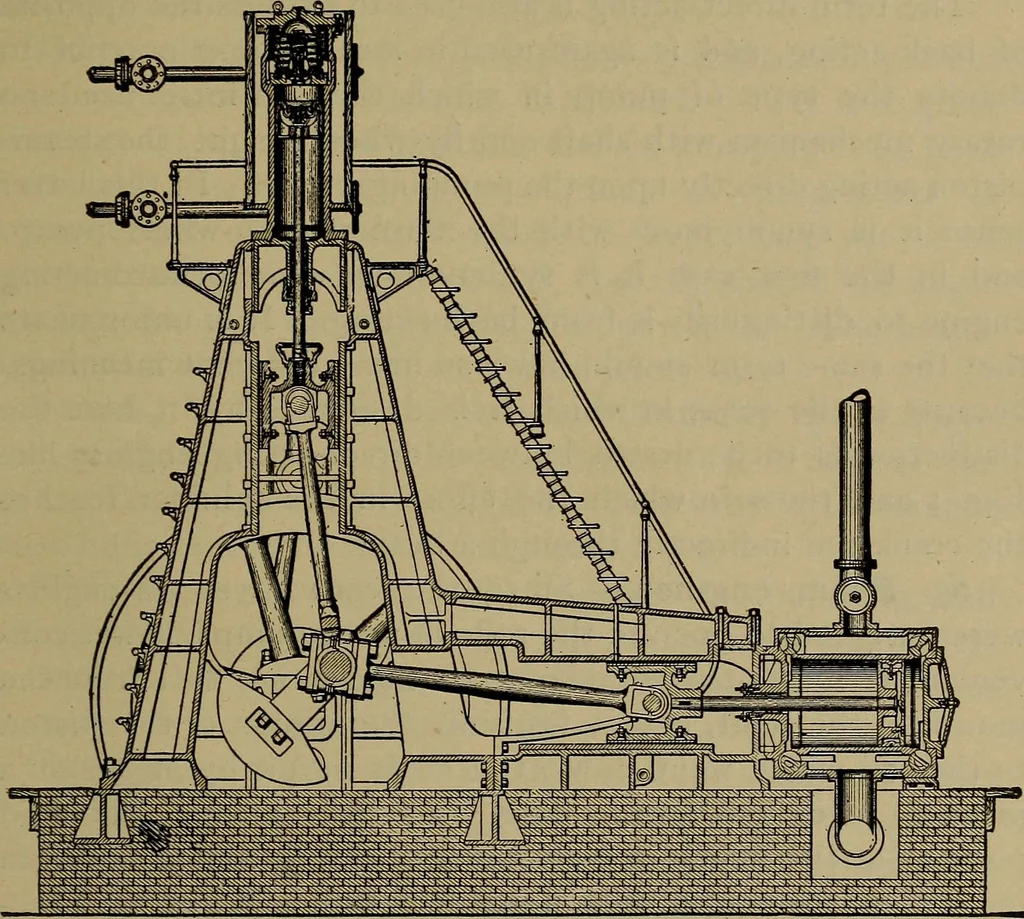

rom a tendency to dig into the metalat upper and lower corners. 21. Combined Horizontal and Vertical Engines. — Adesign of engine has been used for pumping or compressing THE MECHANISM OF ENGINES. 41 service in which the steam-cylinder is arranged with verticalaxis, and the pumping or compressing… … Fig. 24. This arrangement is designed to quarter the cranks of therespective cylinders, so that the maximum effort of the steamend should concur with the greatest resistance. It can alsobe made an arrangement for a beam-engine mechanism (seepar. 22), securing the advantages of the vertical…
