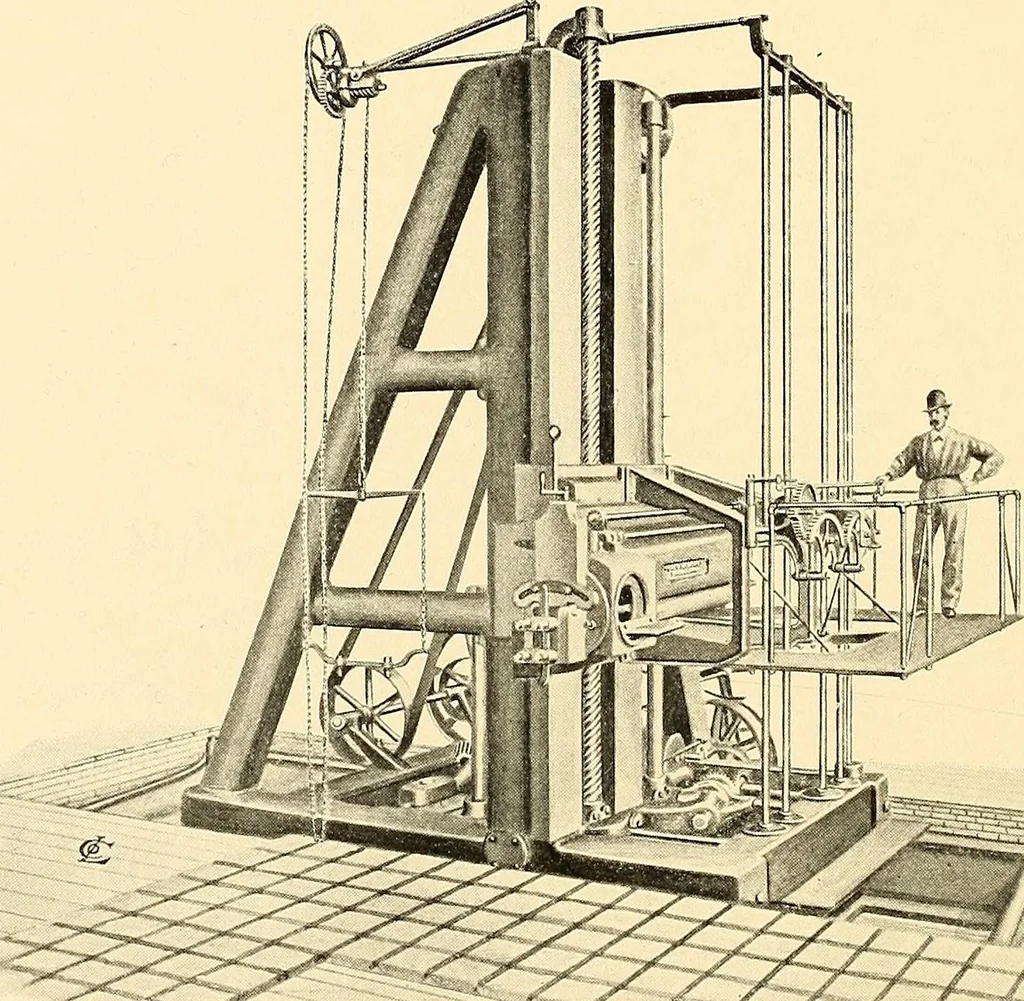

n its return. The bed is 4 ft. deep, 9 ft. wide in the narrow part, has flat ways16 wide and adjustable shoes. The driving gear is operated by a 12 belt froma countershaft or electric motor, and drives through reversing clutches operatedby compressed air. Cutting power on four tools 100,000 lbs.… … PLANING, SHAPING, AND SLOTTING MACHINE.TO Plane 24 Feet ; Slot 12 Feet; Shape 6 Feet. (Side View.) Length of bed, 38 ft.; width of bed, 8 ft. 9>^ ; length of saddle on the bed,14 ft. ; height of uprights, 16 ft. Machine is driven by long belt carried underceiling. Rapid return speed to each…
