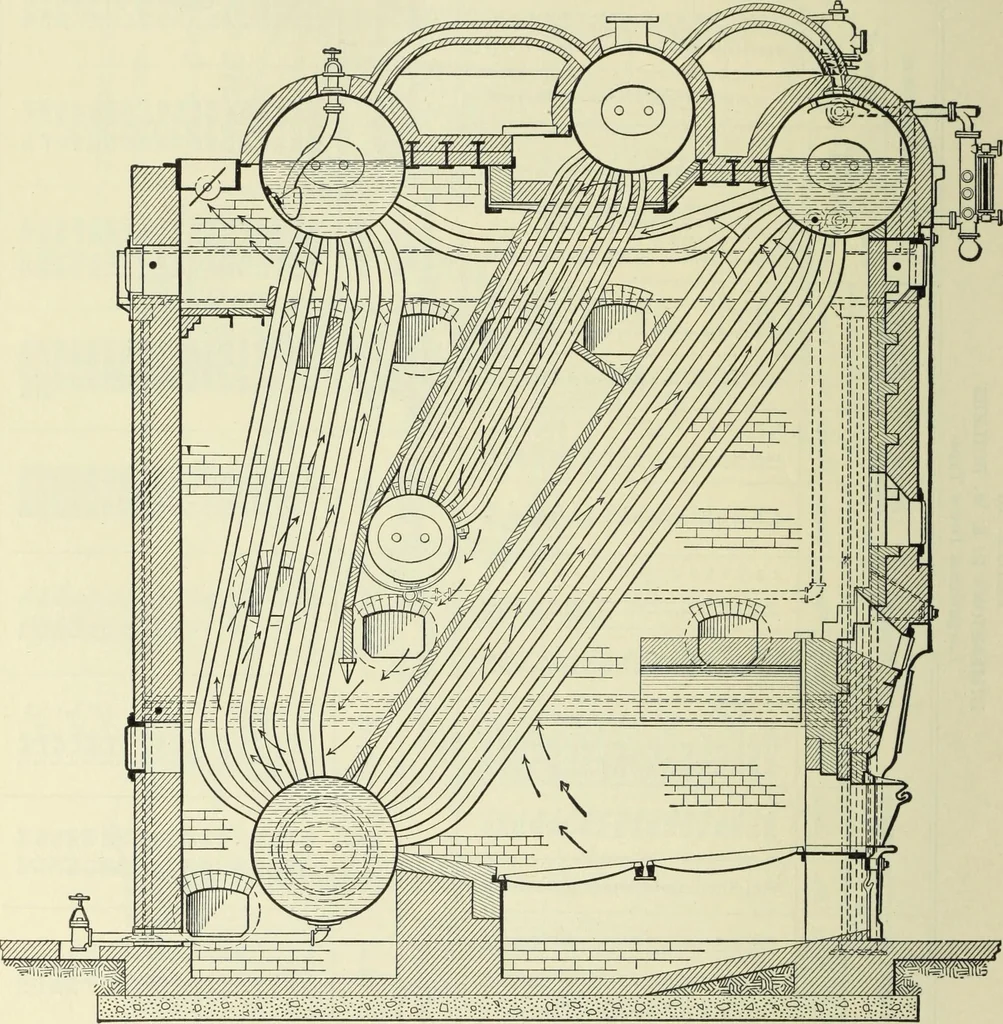

Hinint-o i-i-^t-N^rHoooeoooin-^ojtMOt-tNcoOrHrHcocowmcooiNcococooocomo HHHHrtHHHNNNNNMCCICOMCO 114 POWER PLANTS AND REFRIGERATION to allow for cleaning and tube replacement. Horizontal baffling is employed, as shown in thefigure. The mud drum in this type is located inside of the steam drum. The… … Fig. 26. Stirling Water-Tube Boiler with Superheater in Middle Pass. blow-off cock or valve. The circulation is down through the rear header, thence throughthe tubes to the front header and into the steam drum. A baffle is provided over thefront header in the steam drum as shown to prevent an…
