Twentieth century hand-book for steam engineers and electricians with questions and answers; a practical non-technical treatise .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 34

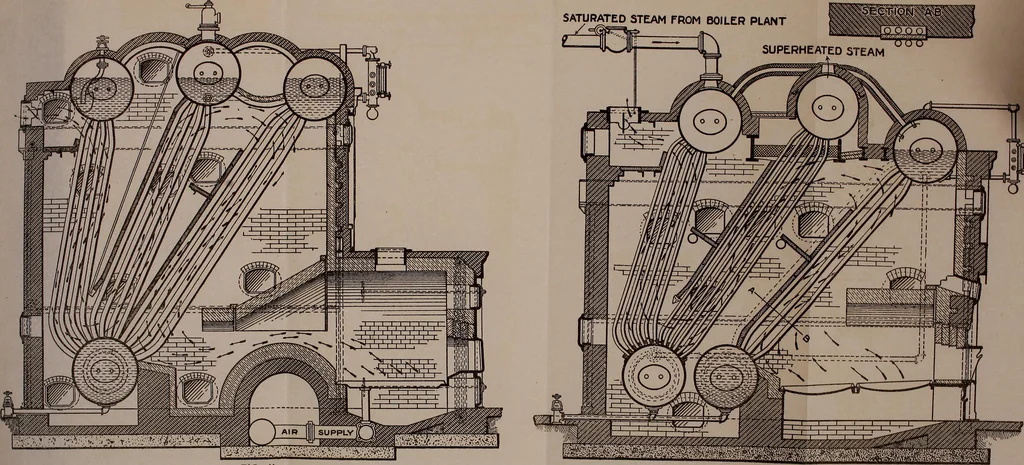

modified to suit special conditions.The brick setting is so clearly shown in Figures 11 and 12that an extended description is unnecessary, j^o specialshapes or other material not found in open market are need-ed. Any necessary repairs to the brick work can be madewithout disturbing the boiler… … FIG. 11 SECTIONAL SIDE ELEVATION OF THE STIRLING BOILERAND BAGASSE FURNACE. FIG. 12 SECTIONAL SIDE ELEVATION OF THE STIRLING INDEPENDENTLY FIRED SUPERHEATER. t Stirling Water Tube Boiler 23 large triangular space between boiler fronts tubes and muddrum is available for a combustion chamber, and for…
