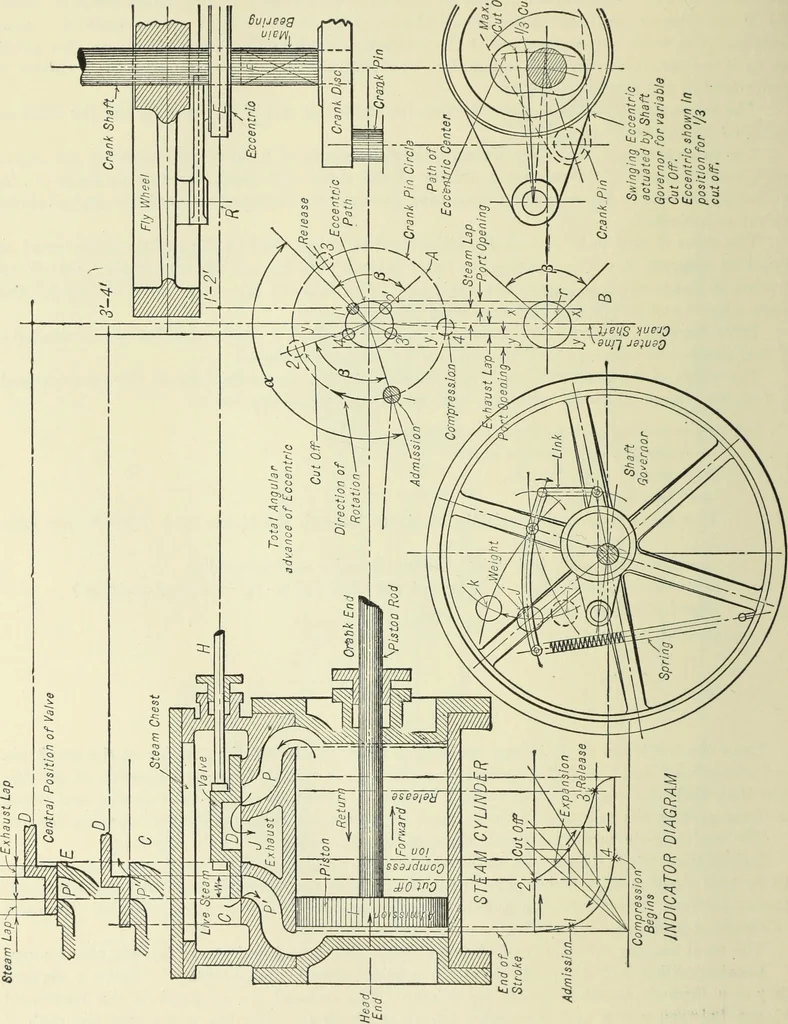

or release. The exhaust lap required is the horizontaldistance between y — y and the center line of crank shaft. The line y — y cuts the path ofthe eccentric center at 4 which is the position of the eccentric center for compression fromwhich the corresponding position 4 of the crank pin for… … Fig. 2. Steam Engine with Automatic Cut Off Gear. STEAM ENGINES 233 The total length of the valve face is equal to 2 (steam lap + width of port) + distancebetween the inside edges of ports. Having determined the dimensions of the valve and eccen-tric as indicated, they may be checked by means of a…
