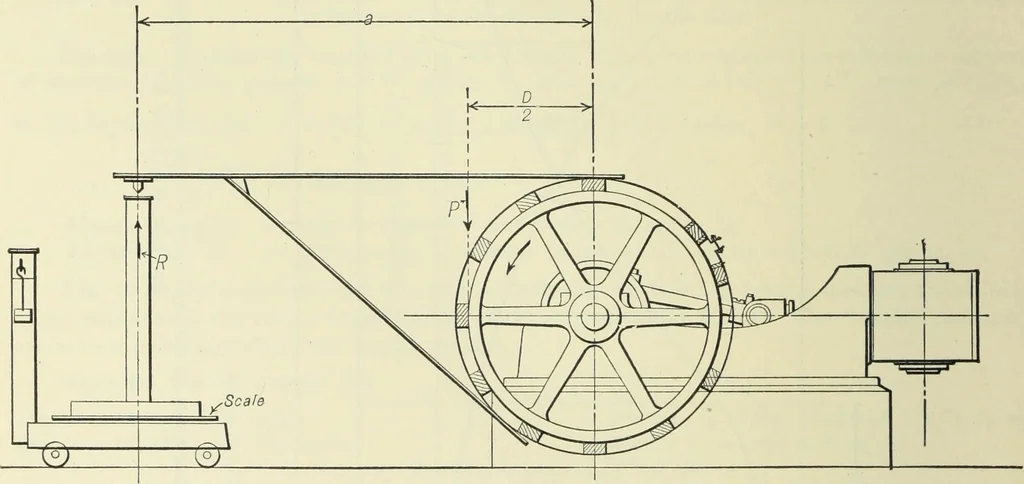

ngine crankshaft as determined by means of a brake mounted on the flywheel (Fig. 20).Let D = diameter of flywheel measured in feet.n — revolutions of engine per minute.P — resistance at circumference of wheel, lb.R = load on scales, lb.a = length of brake arm, ft. D P X — = R X a. PD = 2Ra 1… … Fig. 20. Prony Brake. Example. What is the brake horsepower developed by an engine having a 5 — 0 diameter(D) of wheel running 200 r.p.m. (n), length of brake arm (a) 6 - 0, weight on scales (R) 200 lb. d.hp. 2 X 3.14 X 6 X 200 X 20033000 45.7. Indicated Horsepower. The indicated horsepower refers…
