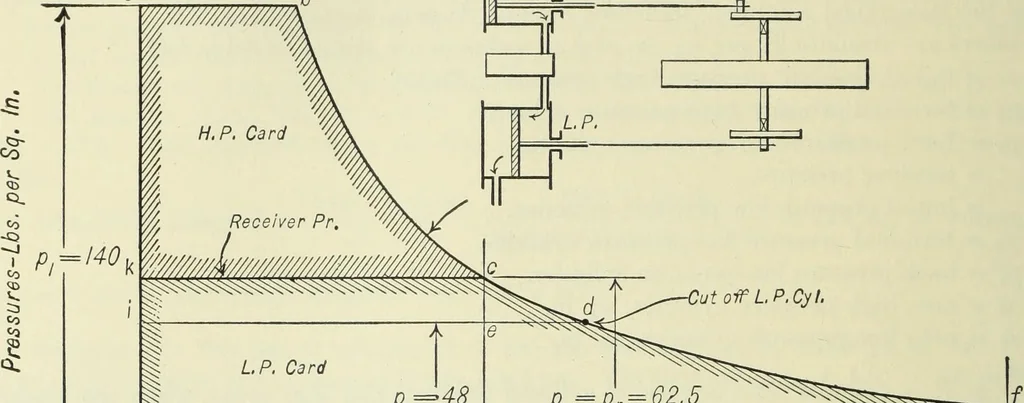

GERATION increase in the m.e.p. of the high-pressure cylinder, with a corresponding decrease in the m.e.p.of the low-pressure cylinder. The examples following serve to illustrate the principles involved. Calculations for the Cylinder Dimensions for Compound Engines. The cylinder ratio orthe ratio… … Pr=48 ^^$$$$^$^?$$$^^£?^4;:^ t j£l 0 Pr. Line /v ^~ p= 25 -Vr Vol. H.P.Cyl. 2 Vol. LP.Cyl. Fig. 22. Combined Pressure-Volume Diagram for a Compound Engine. or rated capacity. For non-condensing engines this ratio is usually made 1 to 23^ or 3 andfor condensing machines 1 to 3^ or 4. The division of…
