Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 339

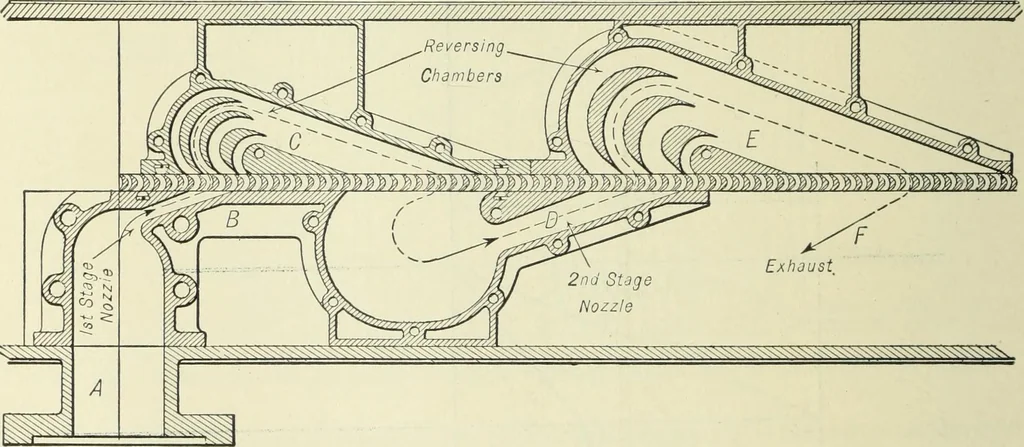

ing,with blades inserted in a groove cut in the periphery of the wheel, and held in place by doubleor triple rivets in each blade, according to size and speed. The cast-iron cylinder is split horizon-tally, a section through the bottom half of a turbine cylinder being shown diagrammatically in Fig.… … __„„„.^ Steam Inlet Fig. 29. Westinghouse—Two-Stage Impulse Turbine. to the first reversing chamber C, where its direction is changed and it is made to pass again throughthe moving blades, giving up the balance of the energy imparted by the first stage nozzles Ihesteam then passes through the…
Building · Heating · Ventilation
