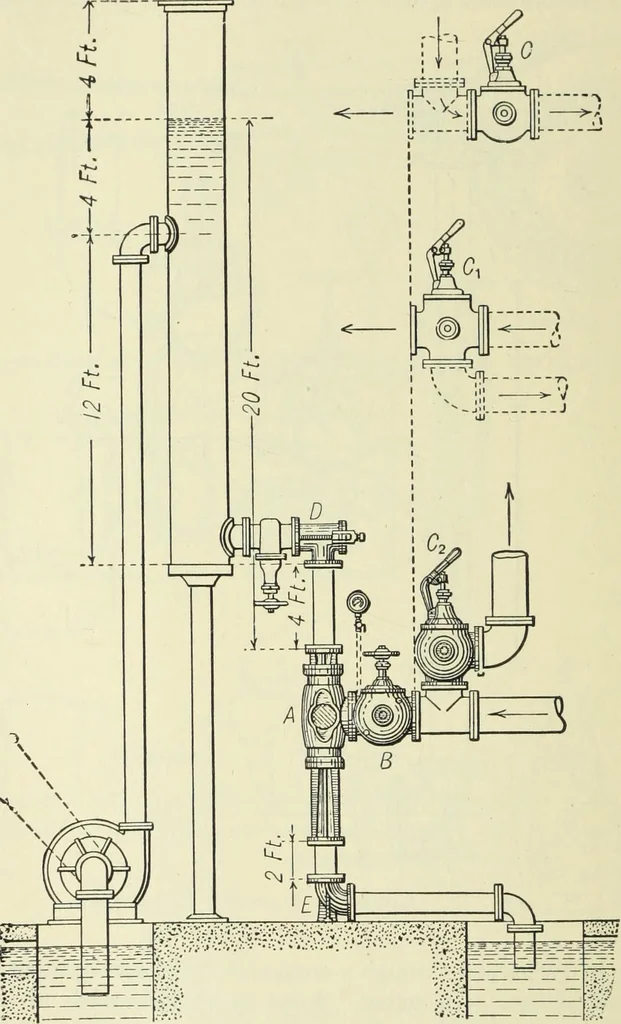

- 398 POWER PLANTS AND REFRIGERATION densing chamber, where the steam is condensed direct by the water. This physical processbeing completed, the water jet, united with condensed steam and the non-condensable gases,has to be discharged against the pressure of the atmosphere. This mechanical work is… … Fig. 14. Method of Installing Koerting Eductor Condenser.A, Condenser; B, Water Check; C, Free Exhaust; D, Strainer; E, Foot Elbow. G and C2, Variations of Free Exhaust. it overcomes the pressure of the atmosphere, being forceful enough to expel the air. To keep thejet straight it is surrounded by…
