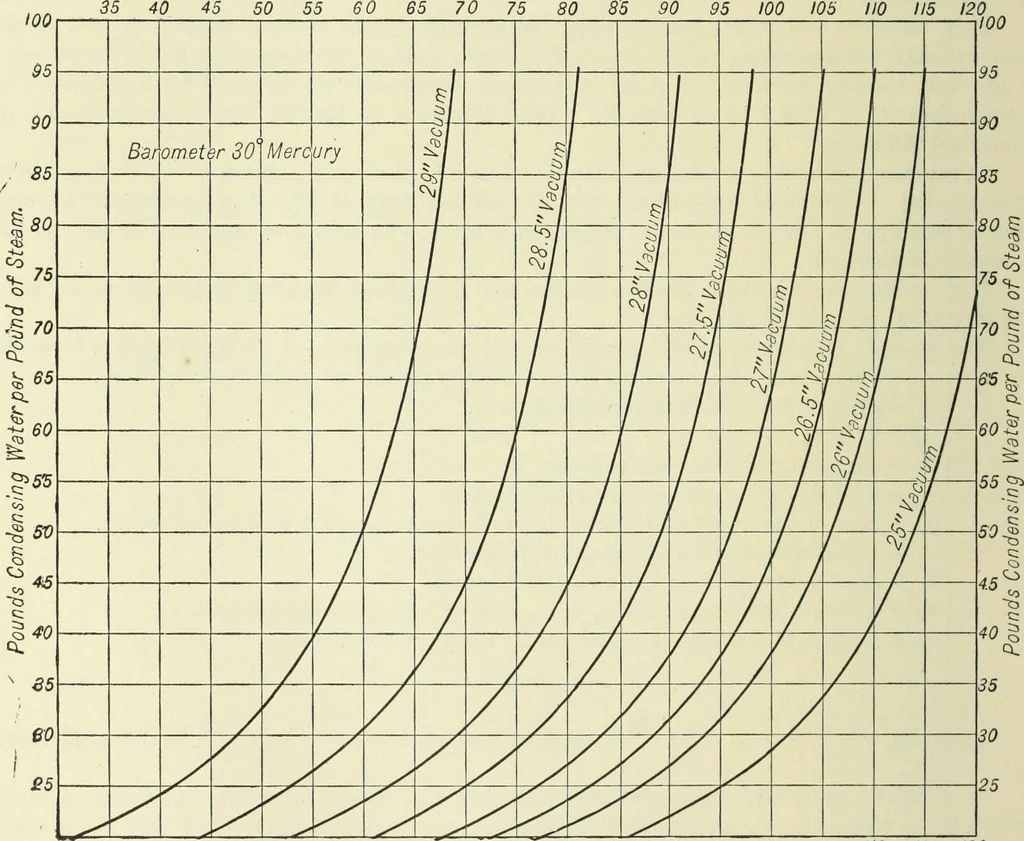

5 and tx m tc - 5 or96.7°, qx = 64.7. TABLE 4 Type of Condenser Vacuum Ins.Mercury tx k TerminalDifference Standard type jet condensers with wet air pump 24 to 26 28 + 27 to 28 28M + tx = t2= tc- 15 to 20tx — h — tr — 2 tn R tc- tx =15 to 20tc — tx — 2 to 5 Ordinary surface condensers with wet… … 35 40 45 50 55 60 65 70 75 80 85 90 95 Temperature Condensing Water in °f. Fig. 32. 1.00 105 110 115 120 To use the diagram, add the desired terminal difference to the temperature of the injection water,and read up from the corresponding point on the base line to the proper vacuum curve. The ratio…
