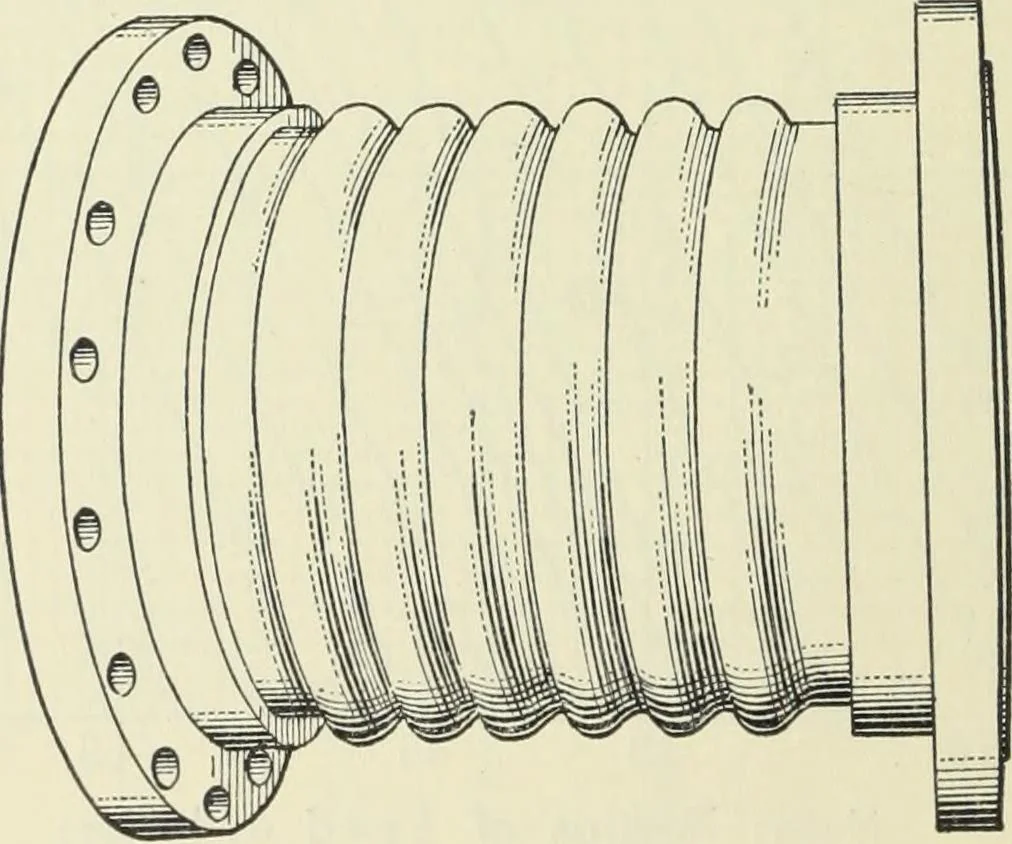

joints determines the number to be installed, or the lineal feet of pipe for which each joint may compensate. Joints of the single-slip type are made up to allow a maximum traverse as follows (expressed in inches): Pipe size 2 -2^-3 -334-4 -43^-5-6-7-8-9-10-12 Traverse 2^-23^-2^-3… … Fig. 5. Corrugated Copper Expansion Joint. expansion joints are generally designed to allow a traverse of 4 on each sleeve for pipe sizesfrom 2 to 9, and 33^> on each sleeve pipe for sizes from 10 to 16. PIPE, FITTINGS, VALVES, COVERINGS AND ACCESSORIES 473 Slip joints are usually made with iron…
