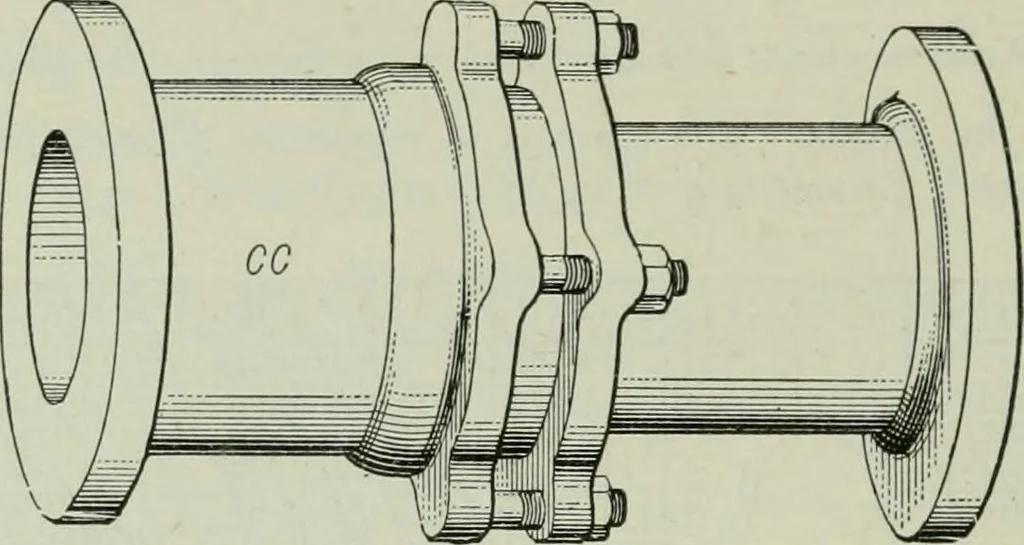

the three vahies arc given, the third can be easily found from the curves. Example. What is the necessary radius for a U-bend to take care of .3 in. of expansion in an8-in. pipe? Referring to the curves and running out horizontally from 3 in. to the line marked 8 in.,the radius of the bend is read… … Fig. 4. Standard Unbalanced Single-Expansion Joint. The allowable traverse or movement of these joints determines the number to be installed, or the lineal feet of pipe for which each joint may compensate. Joints of the single-slip type are made up to allow a maximum traverse as follows (expressed…
