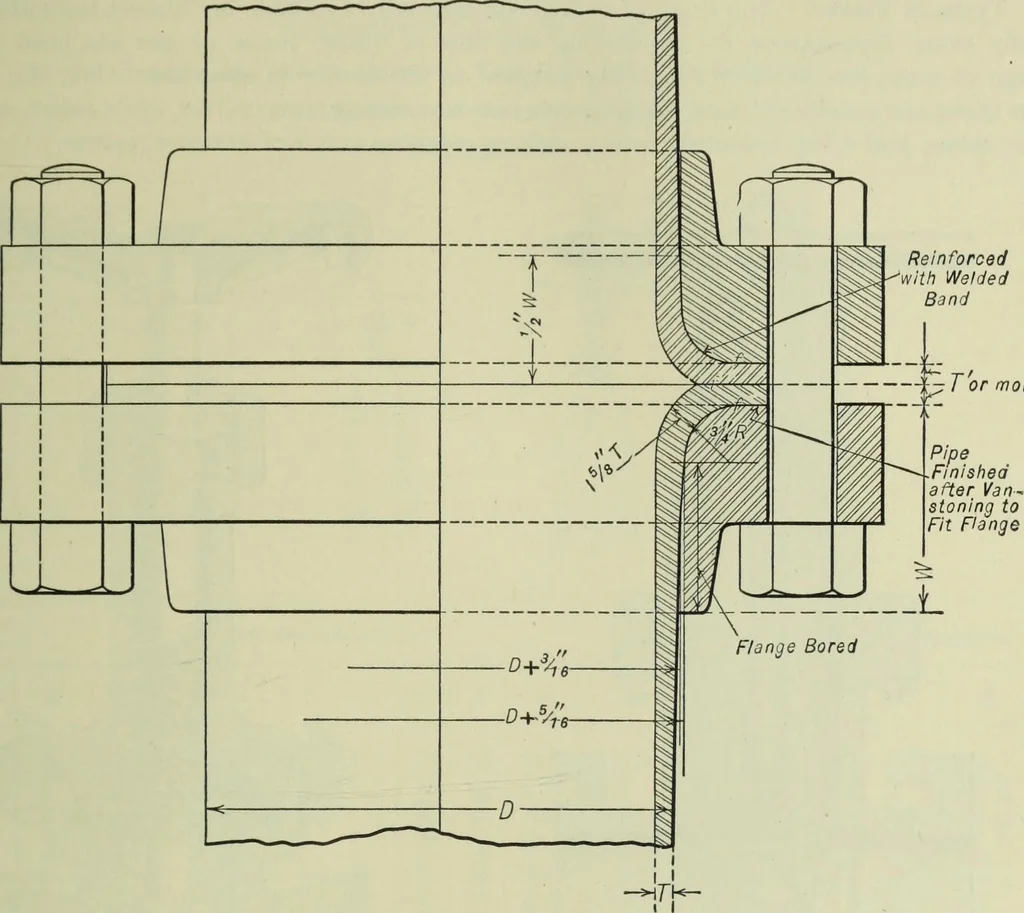

tlement of the building or other misalignment in the piping this style of face meets withconsiderable success. TABLE 20 REINFORCED VANSTONE JOINTS (See Fig. 16) Pipe D T T Pipe D T T Pipe D T T Size, In. In. In. In. Size, In. In. In. In. Size, In. In. In. In. 4 4Vg 34 5/l6 9 9Vs v% 4S 15 15 Vs % 5… … Fig. 16. Reinforced Vanstone Flanged Joint. (M. W. Kellogg Co.)(See Table 20.) VALVES Commercial valves, like fittings, are usually either made with screwed or threaded ends, or elseare flanged for bolted connection to corresponding flanges on the pipe or fitting, in which case theflange and…
