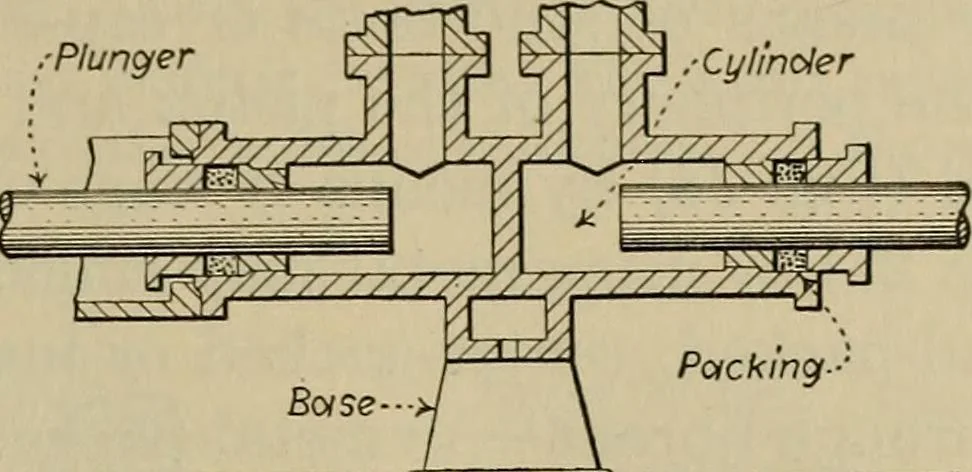

Suction Nozzle ■Fig. 30.—Outside Center-Packed Plunger-Pump. about 200 ft. per min. (2) For the discharge-pipe of a singlepump, about 400 ft. per min. (3) For the discharge-pipe of aduplex pump, about 500 ft. per min. (4) For the centrifugal Sec. 53] DIRECT-ACTING STEAM PUMPS 41 pump about 600 ft.… … Fig. 31.—An Outside End-Packed Plunger-Pump. 53. Direct-Acting Steam Pumps May Be Classified, WithReference To Their Water-Ends, as follows: (1) Piston-Pumps (Fig. 27). (2) Plunger-Pumps (Fig. 30). The latter Eye-Bolt- DischargeOutlet-, Brass LinerSecured with •-.Cap-Screws < Discharge ^tSSSxl…
