Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 529

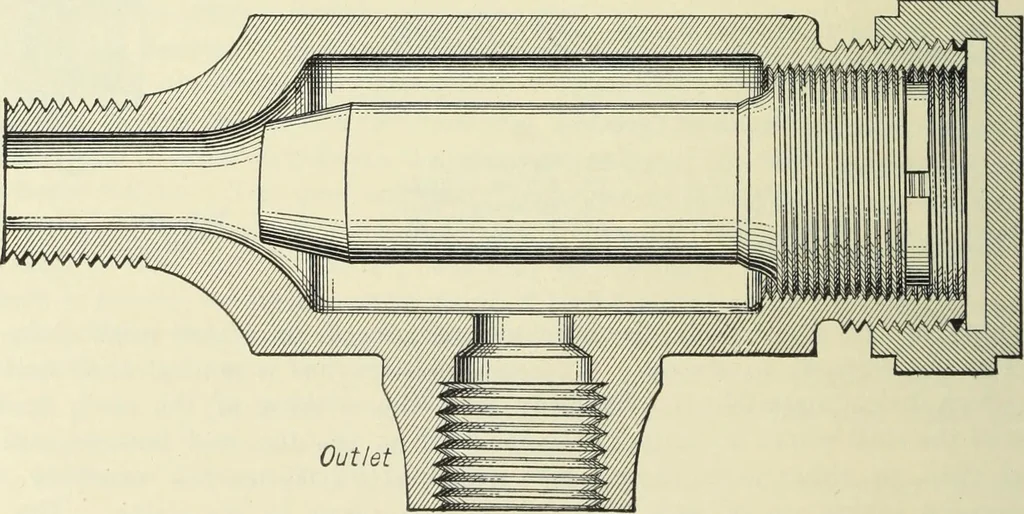

J 2% E—Center of outlet to top of hand wheel 7K F—Center of outlet to top of body 2K Note.—Dimensions of offset globe same as offset corner valves. Regular corner valves have no offset. Otherdimensions are same as given in table for offset corner valves. Inlet … Fig. 32. Monash Plug Teap. PIPE, FITTINGS, VALVES, COVERINGS AND ACCESSORIES 505 This valve is made in sizes from W to 2 either with or without union as shown in Fig.32, and should alwajs be connected with bottom inlet and side outlet. Automatic Air Valves and Traps. The use of automatic air valves…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
